FF-W-100

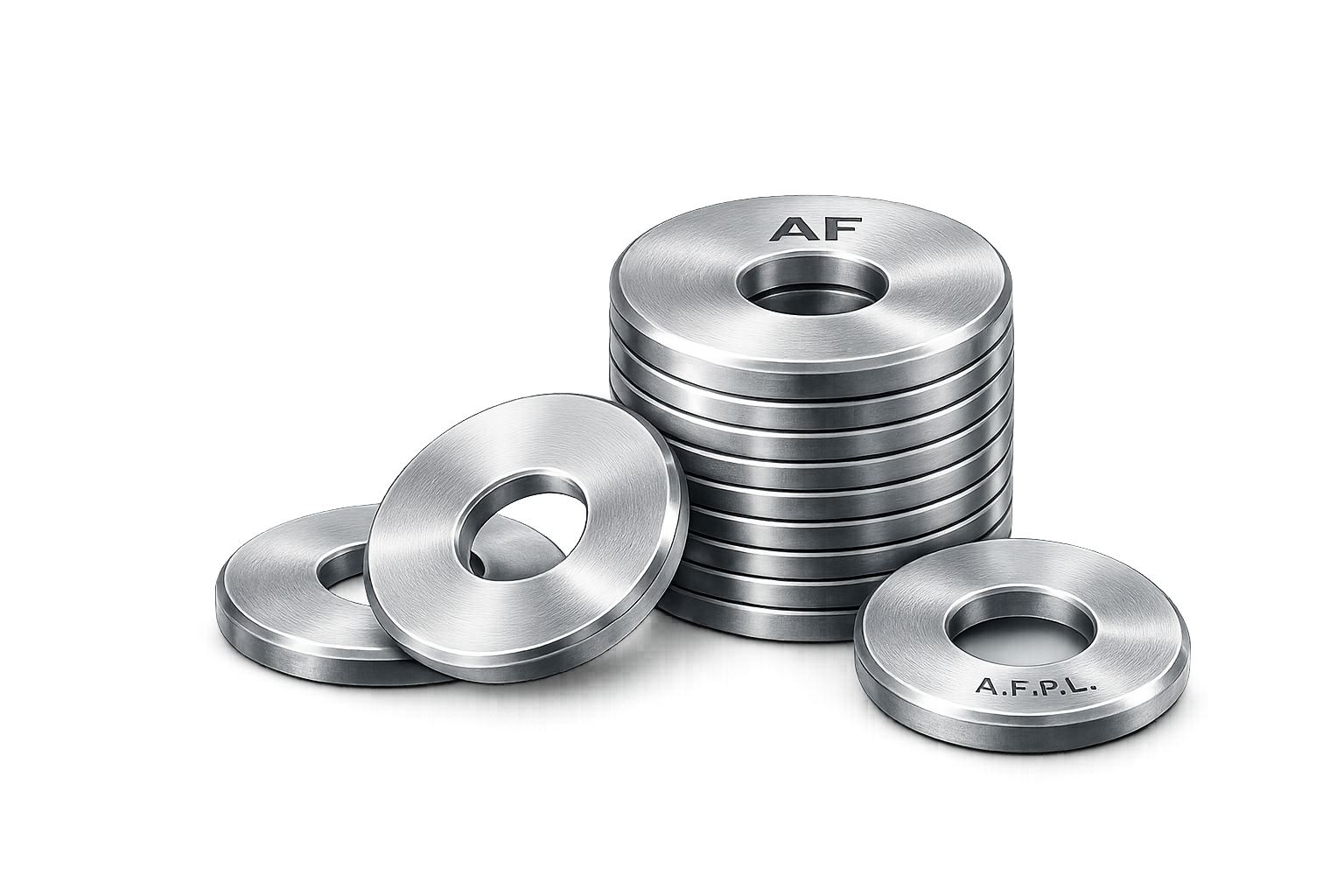

Flat Washers
Mumbai · India
What FF-W-100 Actually Covers
Federal Specification FF-W-100 is a US government procurement standard covering flat washers — plain, non-lock washers used to distribute load, protect a surface, or provide a bearing point under a nut or bolt head. Unlike a purely dimensional commercial standard, FF-W-100 structures each washer designation around three variables that must be specified together: Type (the general series and dimensional pattern), Grade (the material the washer is made from), and Class (the finish applied to it).
That three-part structure exists because government and defense contracts genuinely need to specify washers unambiguously across long supply chains — a purchase order referencing FF-W-100 Type A, Grade 1, Class 1 leaves very little room for a supplier to substitute a materially different washer, which is exactly the point. It’s a more rigid, audit-friendly specification structure than most commercial washer standards, built for the procurement environment it serves.
Akbar Fasteners Pvt. Ltd. exports to over 50 countries, and our FF-W-100 washer range is manufactured across the type, grade, and finish combinations most commonly specified, verified by mechanical and dimensional testing under our ISO 9001:2015 quality system.
Where FF-W-100 Genuinely Applies
Unambiguous Government Procurement
The Type/Grade/Class structure removes ambiguity in defense and federal purchase order specification.
Broad Material Coverage
Grades span steel, stainless steel, brass, bronze, and other nonferrous metals under one specification.
Recognized Alongside Commercial Standards
Often referenced alongside or cross-checked against ASME B18.22.1 for commercial equivalence.
Verified Dimensional Compliance
Type A/B dimensional series manufactured and inspected against the specification’s own tolerances.
Type A vs Type B Explained
Wide Series Flat Washers
Larger outer diameter for a given bolt size, providing greater bearing area and load distribution.
Narrow Series Flat Washers
Smaller outer diameter, used where clearance around the fastener is limited.
Regular (Wide) Series
Mid-range diameter series within Type B, sitting between narrow and the widest options.
Extra Wide Series
Maximum bearing area within the Type B family, for softer materials or oversized clearance holes.
Grade Designations by Material
FF-W-100 assigns numbered grades to specific material families. Confirming the correct grade before ordering avoids material substitution disputes on government contracts.
| Grade | Material Family | Typical Use Case |
|---|---|---|
| Grade 1 | Steel or Copper Alloy | General-purpose structural use |
| Grade 2 | Stainless Steel | Corrosion-resistant applications |
| Grade 3 | Ductile Ferrous Metal | Higher-strength general applications |
| Grade 5 | Brass | Electrical and low-friction applications |
| Grade 6 | Bronze | Marine and corrosion-prone environments |
| Grade 8 | Aluminum | Weight-sensitive, non-structural applications |
FF-W-100 Specification Details
Dimensional Pattern
- Type A Wide Series
- Type B — N Narrow Series
- Type B — W Regular/Wide Series
- Type B — WW Extra Wide Series
Class Designations
- Class 1 Uncoated / Plain
- Class 2 Zinc Coated
- Class 3 Cadmium Coated
- Selection Per Contract Requirement
Available Dimensions
- Nominal Bolt Size #2 – 3″ (Inch Series)
- Metric Equivalent Available to Drawing
- Custom Sizes On Request
- Matching Standard ASME B18.22.1
Application Areas
Wherever a government or defense-adjacent purchase order references the specification directly.
Defense & Military Equipment
hardware requirements
Government Infrastructure Projects
federal facility construction
Aerospace & Defense Manufacturing
component manufacturing
Naval & Marine Equipment
procurement contracts
Electrical & Signal Equipment
for electrical applications
General Federal Contract Supply
the spec is explicitly named
Rail & Transit Equipment
authority procurement
General Government-Contract Hardware
federally specified projects
Standard Export Documentation
Prepared as standard practice for every FF-W-100 washer shipment.
Mill Test Certificate (MTC)
Heat number, chemical composition, and mechanical property verification for every lot.
Certificate of Conformance
Confirms the shipment matches the purchase order Type/Grade/Class specification in full.
Dimensional Inspection Report
Verification against FF-W-100 dimensional tolerances for the ordered Type and series.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
NABL Accredited Test Reports
Independent mechanical and dimensional testing available on request for critical applications.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Internationally Recognised Standards Coverage
Related Fastener Grades & Materials
Stainless Steel Washers Manufacturer
Our broader stainless steel washer manufacturing capability across standard commercial series.
View SS Washers →Fasteners Manufacturer & Exporter to the USA
Our broader capability manufacturing to ASTM/ASME and US federal standards.
View USA Export Guide →High Tensile Bolts Specifications
Matching bolt property classes to pair correctly with FF-W-100 washers.
View High Tensile Specs →Fastener Applications By Industry
A broader guide to matching fastener material grades to the right industry and environment.
View Applications Guide →Need the Exact
Type, Grade & Class?
Send us your FF-W-100 designation — Type, Grade, Class, and size — and we’ll confirm specification match, lead time, and documentation before you order. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
