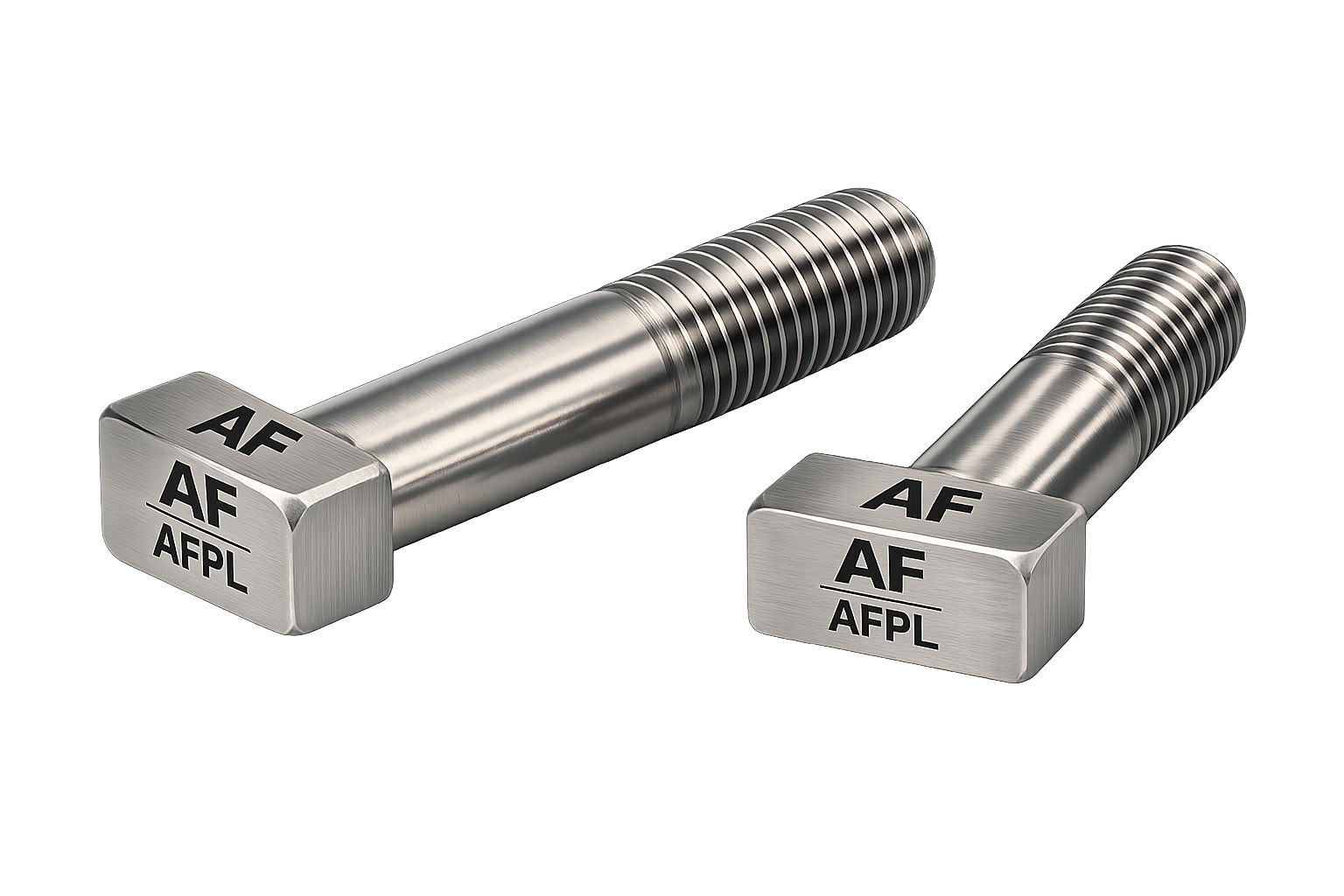

DIN 186 T-Heads
With Square Neck
Standard Weight Chart
What Is a DIN 186 T-Heads With Square Neck
Anti-rotation T-head bolts solve the same problem in two different ways. DIN 188 does it with two small nips that bite into the slot flanks at two contact points. DIN 186 takes a different approach — the round shank immediately beneath the T-head is machined into a square section sized to match the T-slot width, so the anti-rotation load is carried across four flat faces bearing directly against the slot walls, rather than two localized points.
That full-face contact spreads the reaction load over a larger area, which can matter for heavier clamping forces or slots that see more wear over repeated use — a nip can eventually deform or wear down at its two contact points, while a square neck’s bearing area stays distributed. The trade-off is a slightly more involved machining process and a shank that must be sized precisely to the slot, rather than the small nip projection used in DIN 188.
Akbar Fasteners Pvt. Ltd. manufactures DIN 186 T-head bolts in-house at our Mumbai facility, under ISO 9001:2015, with full mill test documentation, and exports this range to over 50 countries.
Where DIN 186 Bolts Genuinely Earn Their Place
Full-Face Anti-Rotation Contact
The square neck bears against the T-slot walls across four flat faces, distributing the anti-rotation reaction over a wider area than a point-contact nip.
Well Suited to Heavier Clamping Loads
The distributed bearing area holds up better under repeated heavy torque cycles than a design relying on two small localized contact points.
Full Size & Weight Reference
A published dimension and weight chart lets you plan freight, packaging, and slot compatibility before placing an order — not after.
Multiple Material & Grade Options
Mild steel and stainless steel available across common property classes, matched to fixturing load and workshop environment.
DIN 186 T-Head Bolt Dimension & Weight Chart
Standard nominal dimensions and approximate weight by thread size — head width (b), head height (k), and the square neck width (s) are the figures to check first against your table’s T-slot before ordering. Weight is given per piece at a 50mm reference shank length; actual weight scales with the ordered length and should be recalculated for your final bill of materials.
| Thread Size (d) | Head Width (b) | Head Height (k) | Square Neck (s) | Recommended T-Slot | Approx Weight/pc @ L=50mm |
|---|---|---|---|---|---|
| M6 | 13 mm | 6 mm | 8 mm | 8 mm | ~0.016 kg |
| M8 | 16 mm | 7 mm | 10 mm | 10 mm | ~0.027 kg |
| M10 | 18 mm | 8 mm | 12 mm | 12 mm | ~0.042 kg |
| M12 | 22 mm | 10 mm | 14 mm | 14 mm | ~0.068 kg |
| M16 | 28 mm | 12 mm | 18 mm | 18 mm | ~0.125 kg |
| M20 | 34 mm | 14 mm | 22 mm | 22 mm | ~0.215 kg |
| M24 | 40 mm | 16 mm | 28 mm | 28 mm | ~0.335 kg |
| M30 | 48 mm | 19 mm | 36 mm | 36 mm | ~0.565 kg |
| M36 | 56 mm | 22 mm | 42 mm | 42 mm | ~0.850 kg |
Figures shown are representative reference values in steel for quick planning purposes, slightly heavier than a plain DIN 261 T-head bolt of the same size due to the square neck section. Please confirm exact dimensions against the current DIN 186 standard document or your engineering drawing, and request our certified dimensional data sheet, before finalizing a purchase order.
T-Slot Fixturing Fastener Range
T-Heads With Square Neck
Full-bearing anti-rotation T-slot clamping bolts in mild steel and stainless, M6 to M36, custom length to drawing.
DIN 188T-Head Bolts With Double Nip
Point-contact anti-rotation T-head bolts, an alternative construction to the square neck variant.
DIN 261Standard T-Head Bolts
Plain T-head bolts for general T-slot clamping where anti-rotation isn’t a specific requirement.
DIN 508 / 787T-Slot Nuts
Rectangular clamping nuts sized to match standard T-slot widths for fixture and tooling assembly.
DIN 186 Technical Overview
Available Materials
- Mild / Carbon Steel Standard Offering
- Stainless Steel 304 / 316 on Request
- Alloy Steel Higher Load Applications
- Surface Finish Black Oxide / Zinc Plated
- Custom Material To Specification
Mechanical Grades
- Property Class 4.6 General Fixturing
- Property Class 8.8 Higher Clamping Load
- Stainless A2/A4 Corrosion Resistant
- Threading Metric Coarse (Standard)
- Testing MTC / NABL on Request
Available Dimensions
- Thread Diameter M6 – M36
- Shank Length Custom to Drawing
- Head Style T-Head With Square Neck
- T-Slot Reference Per DIN 650
- Packaging Loose / Boxed / Palletized
Application Areas
Wherever a T-slot clamped joint carries heavy or repeated torque loading.
Machine Tool Fixturing
table workholding
Heavy Press Tooling
clamping under cycling
Heavy-Duty Fixturing
sustained high torque
CNC Vice & Clamp Mounting
clamping systems to tables
Foundry & Pattern Shop
fixture clamping
Packaging Machinery
clamped to base frames
Metrology & Inspection Tables
gauging & inspection setups
Assembly Line Tooling
for line changeovers
Standard Export Documentation
Prepared as standard practice for every T-head bolt shipment.
Mill Test Certificate (MTC)
Material composition and mechanical property verification for every production batch.
Certificate of Conformance
Confirms the shipment matches the purchase order specification, size, and grade in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Dimensional Data Sheet
Certified head width, height, and square neck dimension data against DIN 186 available on request before order confirmation.
Bill of Lading
Ocean or air freight shipping document confirming carrier, mode, and consignee details.
Internationally Recognised Standards Coverage
Related Fastener Grades & Standards
DIN 188 T-Head Bolts
Point-contact anti-rotation T-head bolts, an alternative construction to the square neck.
View DIN 188 →DIN 261 T-Head Bolts
The base T-head bolt standard without an anti-rotation feature, for general T-slot clamping.
View DIN 261 →DIN 258 Taper Pins
Removable, externally threaded taper pins for precision alignment applications.
View DIN 258 →Top Nickel Fasteners Manufacturer
See our full in-house nickel alloy manufacturing and documentation capability.
View Manufacturer Page →Send Us Your
T-Slot Size & Load Requirement
Tell us your T-slot width, material preference, and quantity — we’ll confirm the correct DIN 186 size and issue a certified dimensional data sheet with your quote. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
