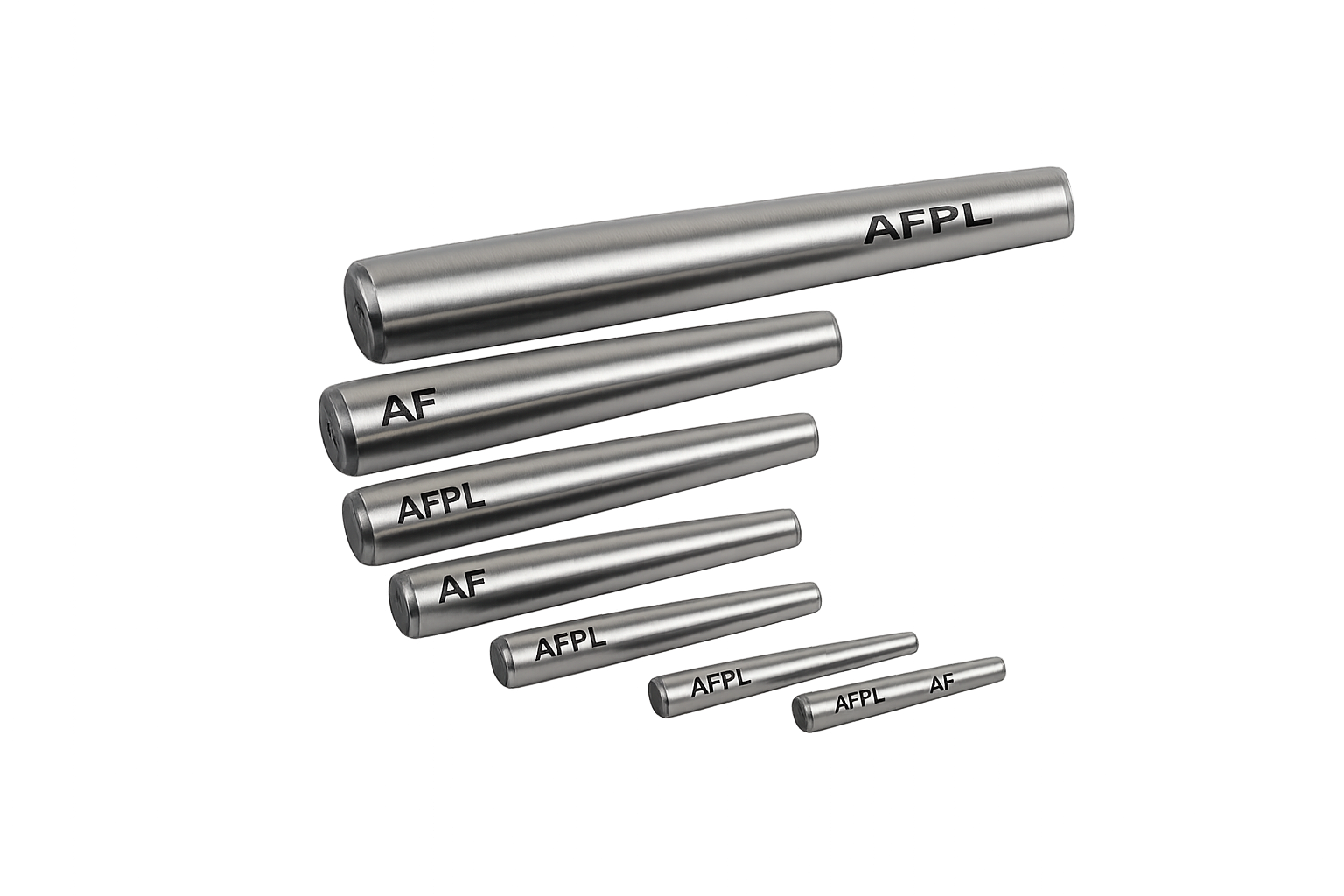

DIN 1 Taper Pins
Manufacturer & Exporter
Mumbai · India
What Are DIN 1 Taper Pins
A taper pin locates and locks two parts using geometry alone. It carries no thread, and unlike a parallel dowel pin it doesn’t rely on a uniform interference fit along its full length — instead, its 1:50 conical taper means the pin wedges progressively tighter as it’s driven into a matching reamed taper hole. That self-locking action makes it resistant to vibration loosening in a way a straight cylindrical pin alone is not, which is why taper pins remain common in machine bases, couplings, and structural alignment where the joint must stay located under sustained mechanical movement.
DIN 1 defines the geometry and tolerance of the standard taper pin, largely carried forward into ISO 2339 internationally. Because reaming a taper hole to a precise depth is more forgiving than reaming a parallel hole to an exact diameter, taper pins are also often specified where hole-making accuracy on site — rather than in a controlled machine shop — is a practical constraint.
Akbar Fasteners Pvt. Ltd. exports to over 50 countries, and our DIN 1 taper pin range is precision-turned to the standard 1:50 taper ratio, with full mill test documentation issued under our ISO 9001:2015 quality system.
Where a Taper Fit Genuinely Outperforms
Self-Locking Under Vibration
The 1:50 taper wedges progressively tighter as it’s driven, resisting loosening far better than a straight-sided pin in dynamic or vibrating assemblies.
Forgiving Hole Reaming
A tapered reamed hole tolerates minor depth variation far better than a parallel bore needs exact diameter control — practical for field or on-site fitting.
Material Versatility
Alloy steel, case-hardened steel, and stainless steel (A2/A4) options to match wear resistance, corrosion exposure, or hardness requirements.
ISO 9001:2015 Batch Consistency
Every batch gauged for taper accuracy, roundness, and surface finish before dispatch, with full mill test documentation on request.
Taper Pin vs Parallel Dowel Pin
Choosing between a taper pin and a parallel dowel pin comes down to how the joint will be assembled, how often it will be taken apart, and whether resistance to vibration matters more than fine-tolerance repeatability. The comparison below is the one we walk through with buyers before quoting, so the pin type matches the actual joint condition rather than habit or assumption.
| Property | DIN 1 / ISO 2339 Taper Pin | DIN 7 / ISO 2338 Dowel Pin | ISO 8734 Hardened Dowel |
|---|---|---|---|
| Pin Form | Tapered, 1:50 ratio | Parallel (cylindrical) | Parallel, hardened |
| Hole Preparation | Reamed taper hole | Reamed parallel hole | Ground/reamed parallel hole |
| Locking Behaviour | Self-locking, wedges tighter | Fixed interference or slip fit | Fixed interference or slip fit |
| Best Suited For | Vibration-resistant, low-cycle joints | General locating, low insertion cycles | Jigs, fixtures, repeated location |
| Removability | Difficult once fully seated | Moderate — press or slip fit | Good — designed for repeat use |
| Relative Cost | Lower | Lower | Moderate |
Taper Pin Product Range
Standard Taper Pins
Precision-turned 1:50 taper pins for general-purpose self-locking location applications.
Threaded-End Taper Pins
Taper pins with a threaded small end for easy removal via draw-out nut in serviced joints.
Hardened Taper Pins
Case-hardened taper pins for higher wear resistance in repeated or heavy-duty applications.
Stainless Steel Taper Pins
Corrosion-resistant taper pins for outdoor, marine, or food-grade equipment applications.
DIN 1 Taper Pin Technical Overview
Diameter & Length
- Large-End Diameter Ø1mm – Ø50mm
- Standard Lengths 8mm – 200mm
- Custom Lengths Available to drawing
- Chamfer Both ends, per DIN 1
- Surface Finish Turned/ground, smooth taper
Ratio & Fit
- Standard Taper 1:50
- Fit Type Self-locking, driven fit
- Straightness Verified full length
- Roundness Gauged per batch
- Custom Taper On request per drawing
Available Materials
- Alloy Steel Unhardened, turned
- Case-Hardened Steel Higher wear resistance
- Stainless Steel A2 / A4 (304 / 316)
- Hardness Grade dependent, on request
- Testing MTC / dimensional report
Application Areas
Wherever a joint needs to resist vibration and shear without a thread.
Machine Base Alignment
under vibrating loads
Shaft & Coupling Assemblies
rotational alignment
Structural Steelwork
site-assembled structures
Agricultural Machinery
joints in field equipment
Heavy Equipment
construction & earthmoving gear
Railway & Rolling Stock
joints under sustained vibration
Gearboxes & Drives
gearbox housings and covers
General Engineering
location across assemblies
Standard Export Documentation
Prepared as standard practice for every taper pin shipment.
Mill Test Certificate (MTC)
Heat number, chemical composition, and hardness verification for every lot.
Dimensional Inspection Report
Taper ratio, diameter, and straightness measurement report per batch on request.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Certificate of Conformance
Confirms the shipment matches the purchase order specification and standard in full.
Bill of Lading
Ocean or air freight shipping document confirming carrier, mode, and consignee details.
Internationally Recognised Standards Coverage
Related Fastener Grades & Materials
DIN 7 Dowel Pins
Ground parallel pins for repeatable locating accuracy where a self-locking taper isn’t needed.
View Dowel Pins →Hastelloy B-3 Stud Bolts
Our established nickel-molybdenum alloy fastening line for severe corrosion service.
View Hastelloy B-3 →Stainless Steel 316 Fasteners
The economical corrosion-resistant starting point across our general fastener range.
View SS 316 →All Fastener Categories
Browse our complete range of bolts, nuts, studs, and precision pins across all materials.
View All Products →Need The Right
Taper & Length?
Send us your drawing or the large-end diameter and length you need — we’ll confirm fit, material, and lead time. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
