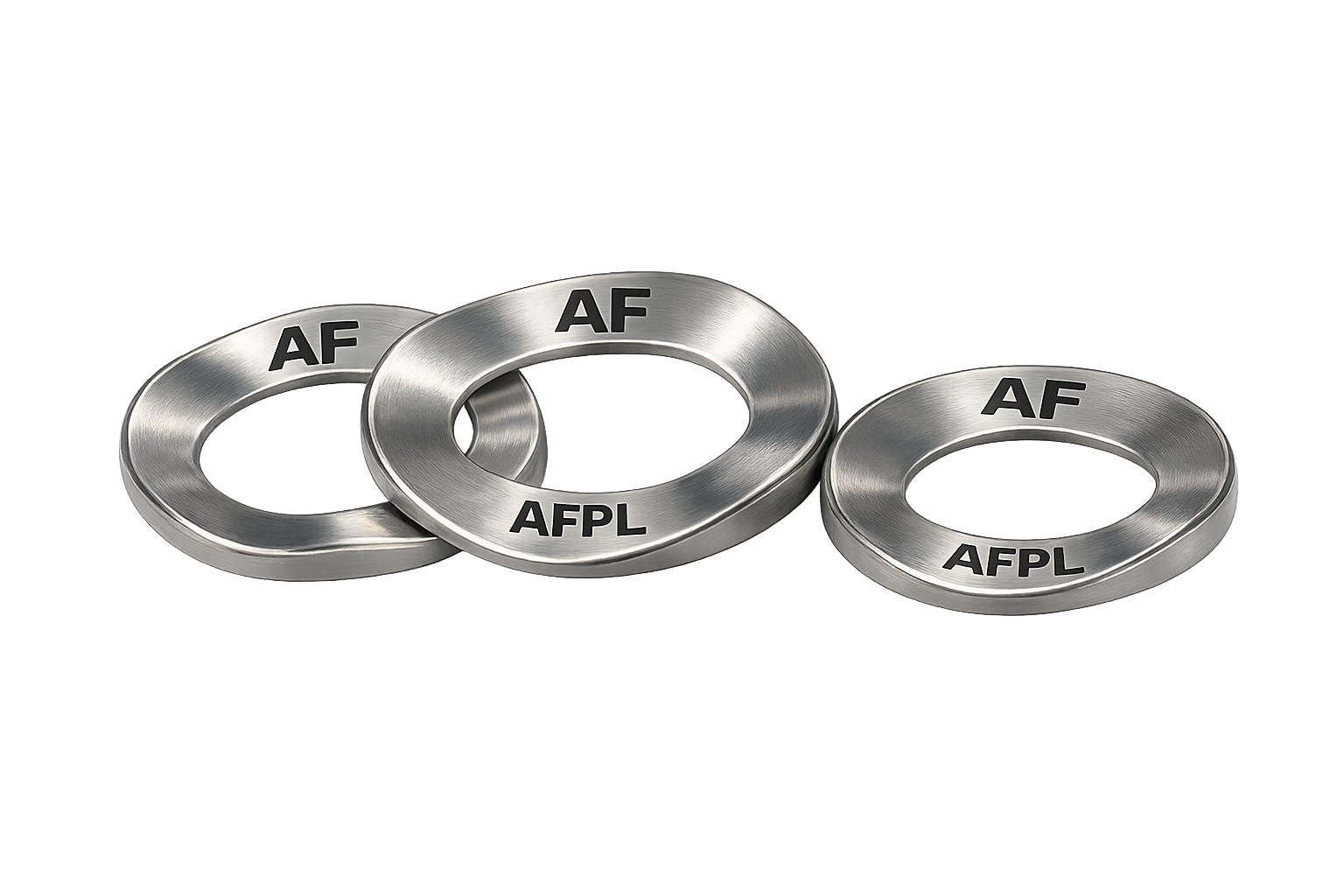

What Is a DIN 137-B Spring Wave Washers
A conventional split spring (lock) washer resists loosening by digging its cut, angled edges into the bearing surfaces on either side — effective, but concentrated at just two contact points, which can mark softer materials and doesn’t provide a genuinely predictable spring rate. DIN 137 takes a different approach entirely: it’s a flat spring washer, not a locking device, designed to compensate for axial movement and apply a controlled, distributed clamping force rather than bite into anything.
Form B is the multi-wave version — stamped with several gentle undulations around the washer’s circumference, as opposed to Form A’s single curved profile. More waves mean a softer, more linear spring characteristic across its compression range, giving more predictable control over the actual preload force applied. That makes Form B particularly well suited to bearing preloading, taking up small axial clearances from thermal expansion or wear, and applications where a soft, even spring force matters more than raw locking bite.
Akbar Fasteners Pvt. Ltd. manufactures DIN 137-B wave washers in-house at our Mumbai facility, under ISO 9001:2015, with full mill test documentation, and exports this range to over 50 countries.
Where DIN 137-B Washers Genuinely Earn Their Place
Softer, More Linear Spring Rate
Multiple waves distribute the spring action across the whole circumference, giving more predictable, controllable preload than a single-curve washer.
No Surface Marking
Applies distributed contact pressure rather than the sharp digging edges of a split lock washer, protecting softer or finished bearing faces.
Full Dimension Reference
A published size and thickness chart lets you select the correct wave washer for your bore, thread, and deflection requirement.
Wide Material & Finish Choice
Spring steel and stainless steel available across the full size range, in bulk quantities for OEM bearing and assembly needs.
DIN 137-B Wave Washer Dimension Chart
Standard nominal dimensions by thread size — inner diameter (d1), outer diameter (d2), and free-state thickness are the figures to check first against your bore and clearance requirement. Wave count typically increases with washer diameter to maintain a proportional spring characteristic across the size range.
| Thread Size (d) | Inner Dia. (d1) | Outer Dia. (d2) | Free Thickness | Typical Wave Count |
|---|---|---|---|---|
| M3 | 3.2 mm | 7.0 mm | 0.3 mm | 3 |
| M4 | 4.3 mm | 8.7 mm | 0.4 mm | 3 |
| M5 | 5.3 mm | 10.2 mm | 0.4 mm | 3 |
| M6 | 6.4 mm | 12.2 mm | 0.5 mm | 3 |
| M8 | 8.4 mm | 15.8 mm | 0.6 mm | 4 |
| M10 | 10.5 mm | 19.0 mm | 0.6 mm | 4 |
| M12 | 13.0 mm | 23.0 mm | 0.7 mm | 4 |
| M16 | 17.0 mm | 29.0 mm | 0.8 mm | 5 |
| M20 | 21.0 mm | 36.0 mm | 1.0 mm | 5 |
| M24 | 25.0 mm | 42.0 mm | 1.2 mm | 6 |
Figures shown are representative reference values for quick planning purposes; actual wave count and spring deflection characteristics can vary by manufacturer. Please confirm exact dimensions against the current DIN 137 standard document or your engineering drawing, and request our certified dimensional data sheet, before finalizing a purchase order.
