What We Mean by “Anchor Bolts”
An anchor bolt secures a structural or equipment base to concrete, and the fundamental split in the whole category is timing: cast-in-place anchors are embedded into the concrete before it cures, while post-installed anchors are drilled and fixed into concrete that has already hardened. That single decision — made at the design stage, long before material selection — determines which entire family of anchor you need.
We manufacture the full range in-house: L-type (bent) anchor bolts and J-type anchor bolts (classic cast-in-place designs, bent for pull-out resistance), headed anchor bolts (a forged or upset head for higher tension capacity than a bend), wedge anchors (mechanical expansion, post-installed into a drilled hole), sleeve anchors (lighter-duty mechanical expansion for masonry and lighter loads), chemical/epoxy anchors (adhesive-bonded, post-installed, strong performance near edges and in seismic zones), drop-in anchors (internally threaded, flush-mount post-installed anchors), and foundation anchor bolts for heavy equipment and structural steel base plates.
Every anchor type is available across our full material range — carbon steel, ASTM F1554 Grade 36/55/105 alloy steel, stainless 304/316, and exotic alloys where corrosion service demands it — manufactured to ISO 9001:2015 with full mill test documentation.
One Supplier, Every Anchor Type & Material
Full Material Range
From ASTM F1554 Grade 36 through Grade 105, plus stainless and exotic alloys for corrosion-critical foundation anchoring.
Cast-In & Post-Installed Anchors
L-type, J-type, headed, wedge, sleeve, chemical, and drop-in anchors — sourced from one manufacturer instead of several.
ISO 9001:2015 QC & Documentation
Full mill test certificates, dimensional inspection, and certificate of conformance on every shipment, regardless of anchor type.
Custom Lengths & Bends
Non-standard L/J bend dimensions, lengths, and drawing-to-part manufacturing for structural and equipment-specific requirements.
Cast-In-Place vs Post-Installed Anchors
The most consequential anchor bolt decision happens before the concrete is even poured — because cast-in-place anchors have to be positioned and held in place during the pour, while post-installed anchors are drilled in after the concrete has cured, which means they’re the only real option for retrofit and modification work. Within post-installed anchors, the choice between wedge, sleeve, and chemical anchors comes down to load capacity, edge distance, and whether the concrete is cracked or uncracked. The comparison below is the one we walk through with buyers and contractors before an anchor type gets locked into a foundation drawing.
| Property | Cast-In-Place (L/J/Headed) | Wedge Anchor | Chemical (Epoxy) Anchor | Sleeve Anchor |
|---|---|---|---|---|
| Installation Timing | Embedded before concrete cures | Drilled after concrete cures | Drilled after concrete cures | Drilled after concrete cures |
| Anchoring Mechanism | Bend/head bears against concrete | Mechanical expansion clip | Adhesive bond to hole wall | Mechanical expansion sleeve |
| Load Capacity | Highest — full embedment depth | Moderate-High | High, often exceeds wedge anchors | Lower — lighter-duty use |
| Edge Distance Sensitivity | Low — planned into layout | High — expansion force can spall concrete | Low — no expansion force | Moderate |
| Best Suited Use | New construction, structural base plates | General retrofit anchoring | Seismic zones, close edge distances | Masonry, light equipment mounting |
Anchor Bolt Product Range

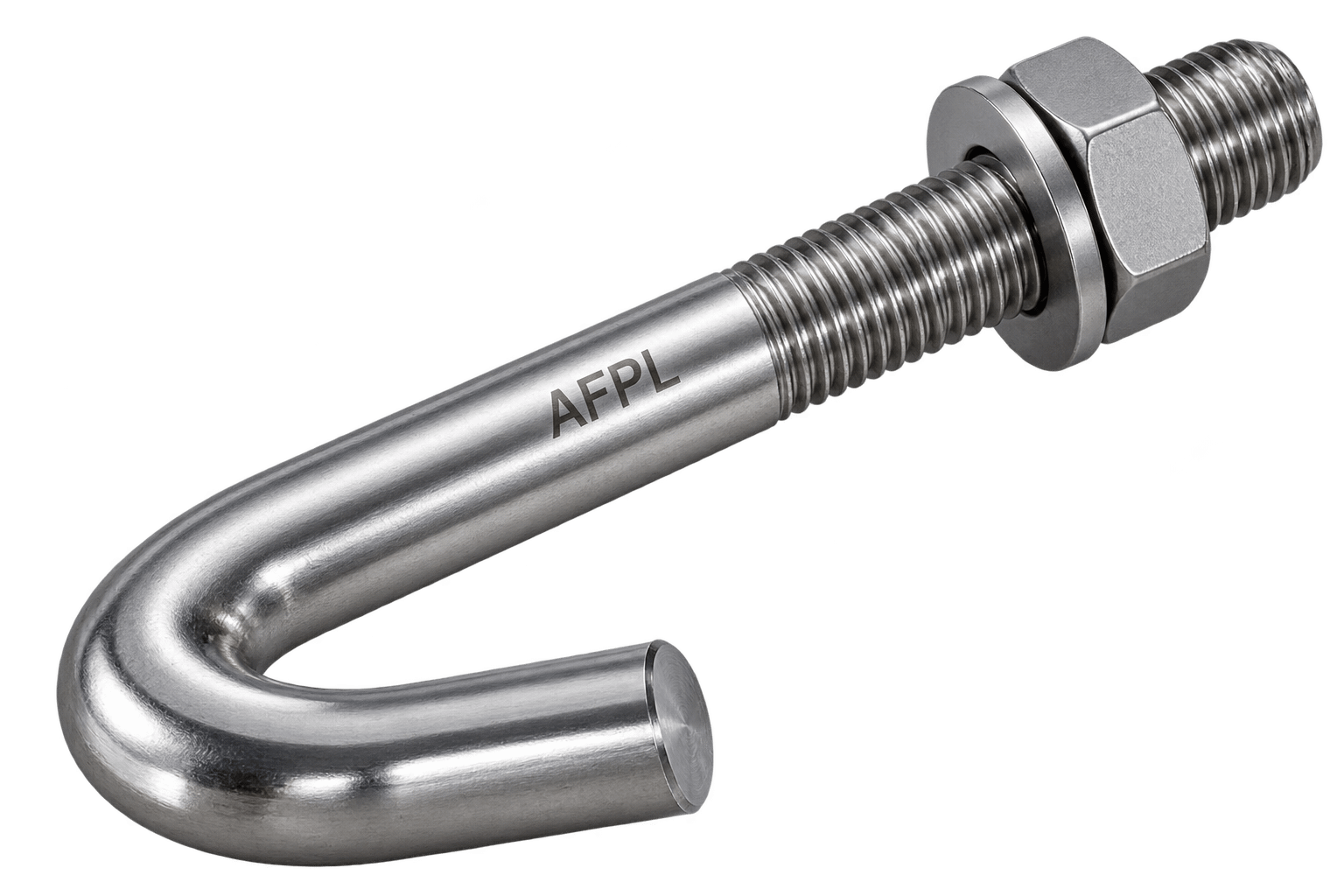

L-Type (Bent) Anchor Bolts
Classic cast-in-place bend for pull-out resistance
J-Type Anchor Bolts
Hooked cast-in-place design for lighter structural anchoring

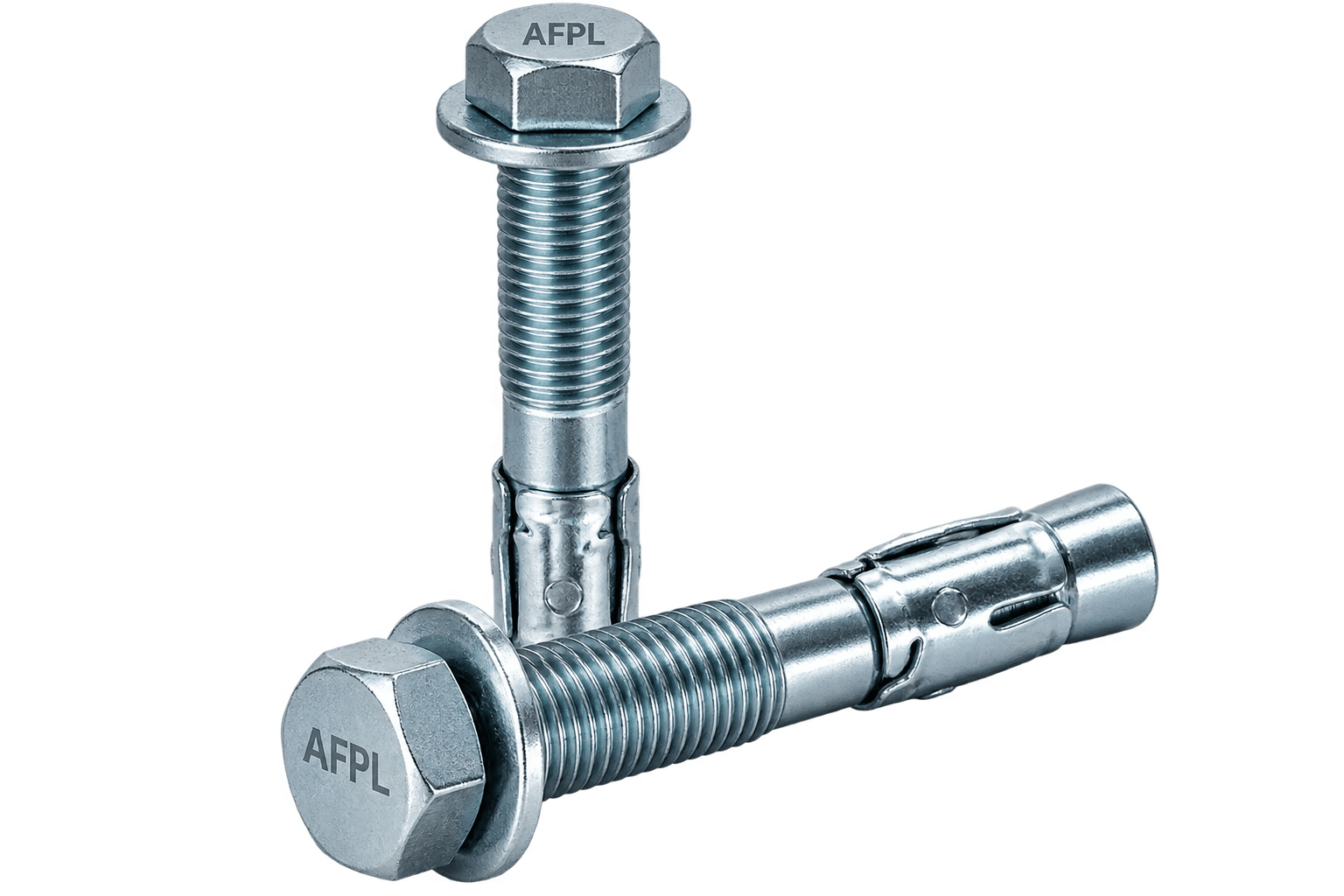

Headed Anchor Bolts
Forged head for higher tension capacity than a bend

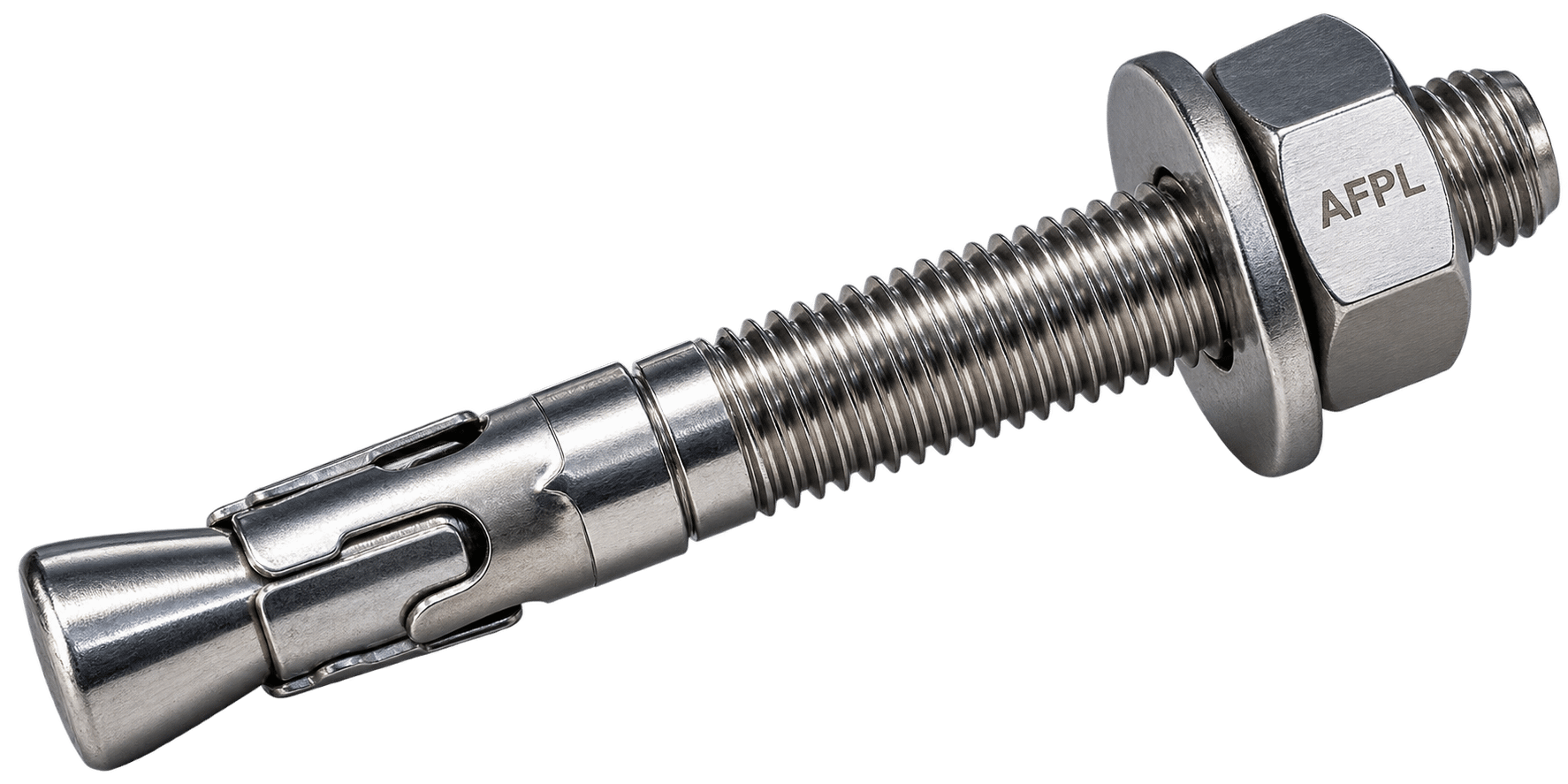

Wedge Anchors
Mechanical expansion for general post-installed anchoring

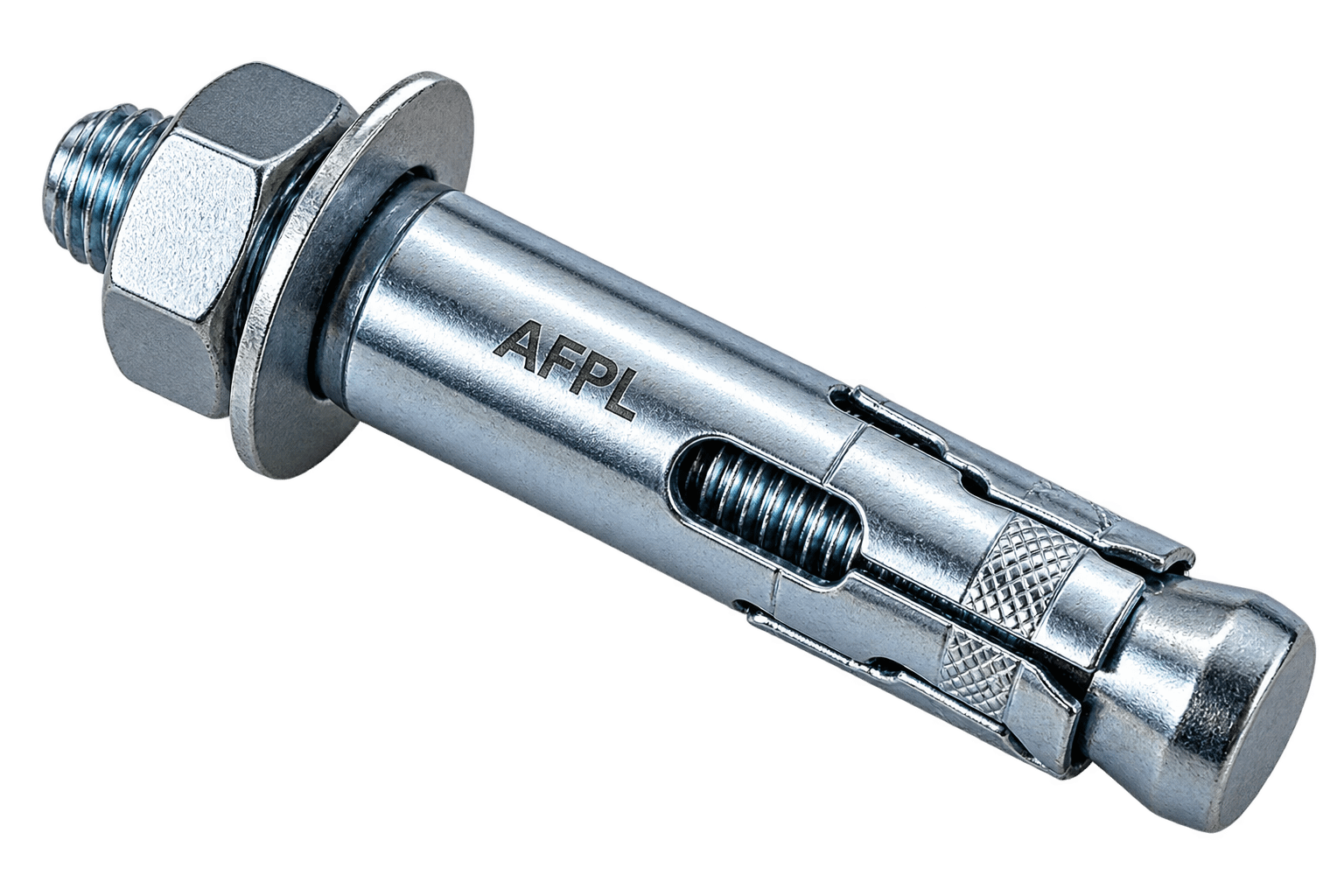

Sleeve Anchors
Lighter-duty expansion anchoring for masonry

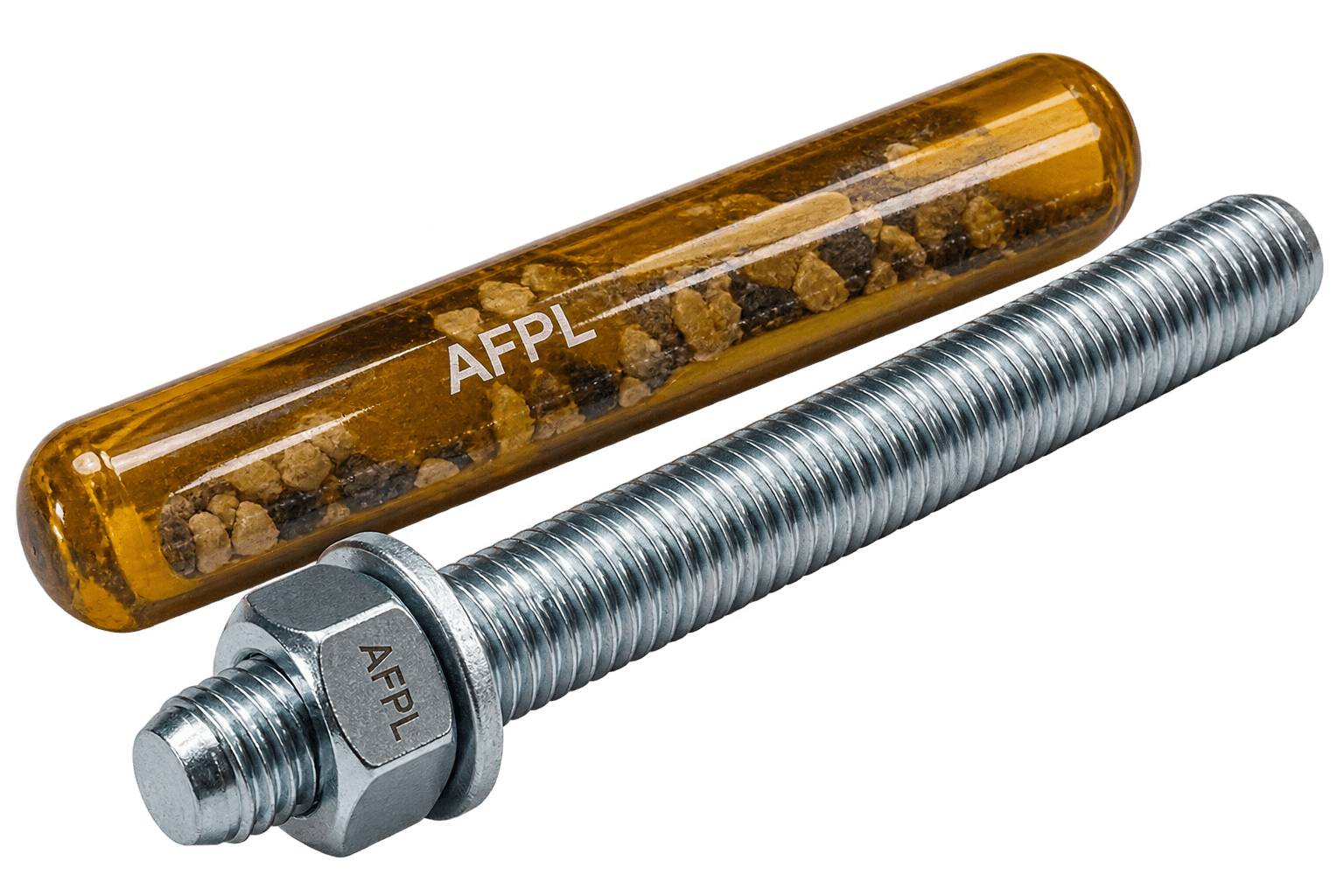

Chemical / Epoxy Anchors
Adhesive-bonded for seismic zones and close edge distances

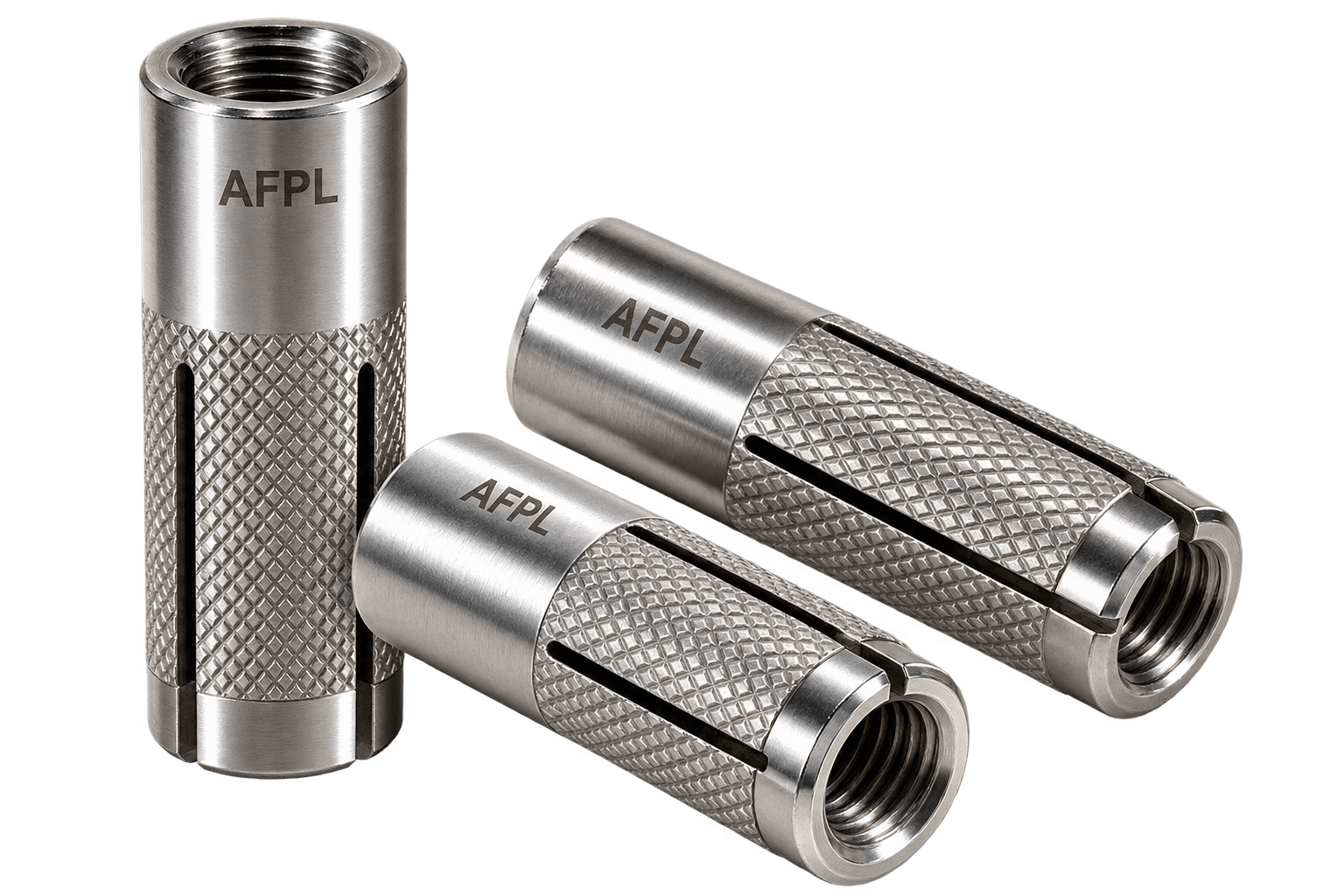

Drop-In Anchors
Internally threaded, flush-mount post-installed anchors
Foundation Anchor Bolts
Heavy equipment and structural base plate anchoring
Anchor Bolt Technical Specifications
Available Materials
- Carbon Steel ASTM A36 Equivalent
- Alloy Steel ASTM F1554 Gr.36/55/105
- Stainless Steel 304 / 316 / 316L
- High-Strength Alloy ASTM A193 B7 (rod stock)
- Exotic Alloys Available on request
ASTM F1554 Yield Strength
- Grade 36 36 ksi Yield
- Grade 55 55 ksi Yield
- Grade 105 105 ksi Yield
- Weldability Grade 55 (S1) — Weldable
- Testing MTC / NABL on request
Available Dimensions
- Diameter 12mm – 75mm
- Length Up to 1500mm standard
- Bend Configuration Custom L/J per drawing
- Thread Length Per project specification
- Finish Plain / HDG
Application Areas
Wherever a structure or piece of equipment needs to be permanently secured to concrete.
Structural Steel Construction
columns and structural frames
Heavy Equipment Mounting
machinery and process equipment
Power & Infrastructure
substation foundation anchoring
Marine & Offshore
anchoring for harsh exposure
Renovation & Retrofit
for post-construction anchoring
General Industrial Equipment
material grade
Seismic Zone Construction
for seismic performance
Bridges & Civil Structures
civil structure foundations
Standard Export Documentation
Prepared as standard practice for every anchor bolt shipment, regardless of type or material.
Mill Test Certificate (MTC)
Heat number, chemical composition, and mechanical property verification.
Certificate of Conformance
Confirms the shipment matches the purchase order specification in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown.
NABL Accredited Test Reports
Independent mechanical and chemical testing available on request.
Bill of Lading
Ocean or air freight shipping document confirming carrier, mode, and consignee details.
