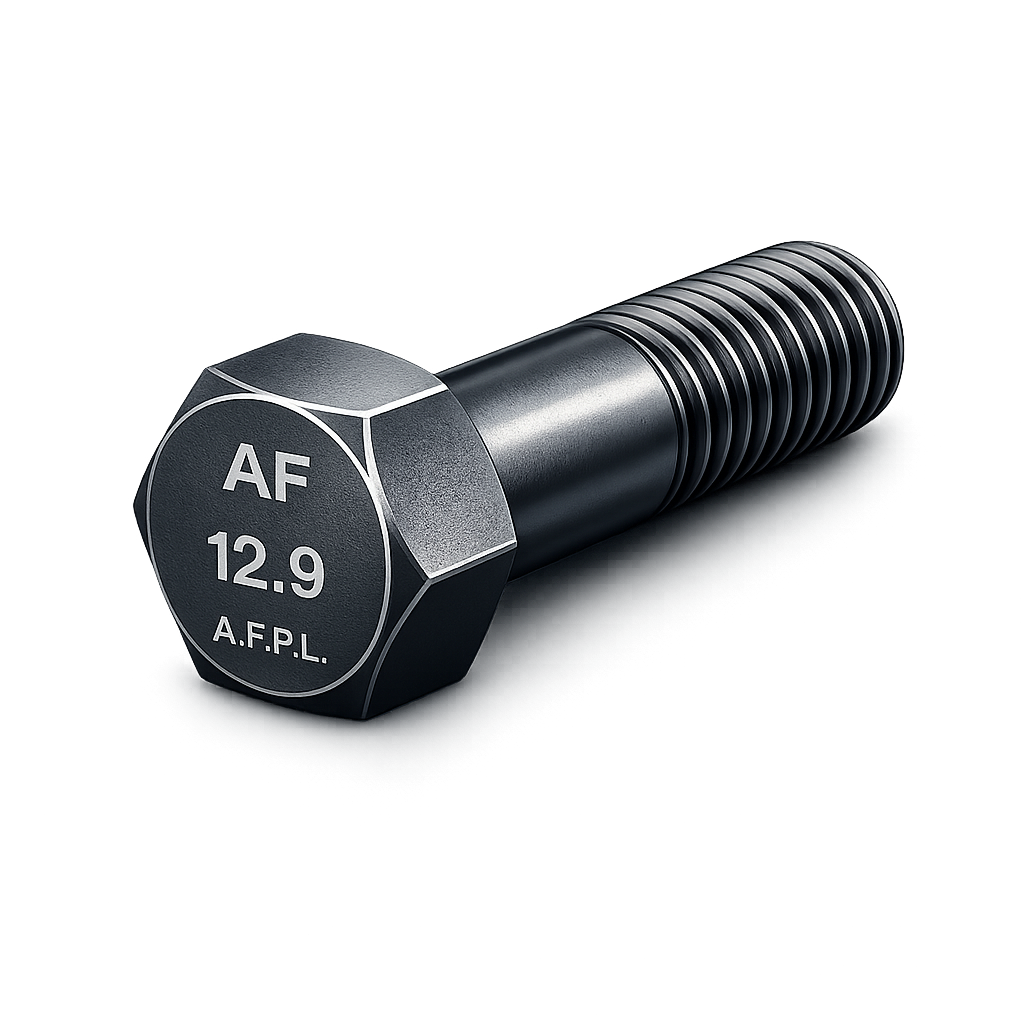

Grade 12.9
Hex Head Bolt
Mumbai · India
What “12.9” Actually Means
ISO 898-1 grade markings encode two numbers directly readable from the stamp on the bolt head — the first number, multiplied by 100, gives minimum tensile strength in MPa; the second, divided by 10, gives the yield-to-tensile ratio. For Grade 12.9, that’s 12 × 100 = 1200 MPa minimum tensile strength, and 9/10 = 0.9 yield ratio, meaning minimum yield strength works out to 1080 MPa. Both numbers matter: tensile strength sets the ultimate failure point, but yield strength is what determines the actual usable clamping force before permanent deformation begins.
Reaching those numbers requires a quenched and tempered alloy steel — plain carbon steel simply cannot achieve Grade 12.9 properties, so genuine 12.9 bolts are alloy steel (typically containing chromium, molybdenum, or boron) heat treated through a controlled quench-and-temper cycle. That heat treatment is what gives the steel its high strength, but the same process that creates that strength also makes the material genuinely more susceptible to hydrogen embrittlement during subsequent processing — a real trade-off worth understanding fully before specifying Grade 12.9 over a lower class.
Akbar Fasteners Pvt. Ltd. exports to over 50 countries, and our Grade 12.9 hex head bolt range is manufactured with controlled heat treatment and verified by mechanical testing under our ISO 9001:2015 quality system.
Where 12.9 Genuinely Earns Its Place
Highest Common Clamping Force
1080 MPa yield strength allows more preload per bolt than Grade 10.9, useful where joint space is limited.
Weight-Critical Bolt Count Reduction
Higher strength per bolt can reduce the number or size of fasteners needed for a given joint load.
Standardized Global Property Class
ISO 898-1 Class 12.9 is internationally recognized, simplifying cross-border specification and sourcing.
Verified Mechanical Properties
Batch-tested tensile, yield, and hardness properties confirm genuine 12.9 performance, not just the marking.
Why Grade 12.9 Needs Extra Care in Processing
Higher Hydrogen Embrittlement Risk
The high-strength, quenched-and-tempered microstructure of Grade 12.9 is genuinely more susceptible to hydrogen embrittlement than lower classes — a real risk during electroplating.
Baking Required After Electroplating
If zinc electroplated, Grade 12.9 fasteners require a controlled post-plating baking cycle to drive off absorbed hydrogen — skipping this step is a genuine failure risk.
Mechanical Plating or Dacromet Coating
Non-electrolytic coating processes avoid hydrogen absorption entirely, and are frequently preferred for Grade 12.9 in critical applications.
Grade 10.9 for Less Critical Joints
Where the extra clamping force of 12.9 isn’t genuinely needed, Grade 10.9 carries meaningfully lower embrittlement risk at a lower cost.
Grade 12.9 Detailed Properties
Per ISO 898-1
- Tensile Strength 1200 MPa min
- Yield Strength 1080 MPa min
- Elongation 9% min
- Hardness 39 – 44 HRC
Manufacturing Process
- Base Material Alloy Steel (Cr-Mo/B)
- Process Quenched & Tempered
- Marking “12.9” + Manufacturer ID
- Testing MTC / NABL on request
Available Dimensions
- Metric Diameter M3 – M36
- Head Type Hex Head (Others on Request)
- Finish Plain / Zinc / Mechanical Plating
- Matching Nut Class 12 per ISO 898-2
Grade 12.9 Torque Reference Table
Approximate tightening torque values for common sizes, assuming a standard friction coefficient. Always confirm actual torque against your specific joint design, lubrication condition, and engineering requirement — these are reference starting points, not a substitute for joint-specific calculation.
| Size | Dry Torque (Nm) | Lubricated Torque (Nm) |
|---|---|---|
| M6 | ~12.5 | ~9.4 |
| M8 | ~30 | ~22.5 |
| M10 | ~61 | ~46 |
| M12 | ~105 | ~79 |
| M16 | ~260 | ~195 |
| M20 | ~510 | ~380 |
| M24 | ~880 | ~660 |
Grade 12.9 vs 10.9 vs 8.8
Grade 12.9
1200 MPa tensile, 1080 MPa yield. Highest strength, but genuinely higher embrittlement risk and cost.
Grade 10.9
1040 MPa tensile, 940 MPa yield. The most widely used high-strength class, better embrittlement tolerance.
Grade 8.8
800 MPa tensile, 640 MPa yield. Standard general-purpose high tensile grade for most structural needs.
Application Areas
Wherever the highest bolt strength genuinely justifies the added processing care.
Aerospace & Motorsport
structural bolting
Engine & Drivetrain Components
and drivetrain bolting
Heavy Machinery Assembly
construction, and industrial equipment
Precision Tooling & Fixtures
tooling assemblies
Rail & Rolling Stock
for rail vehicle assemblies
Power Transmission Equipment
and gearbox bolting
Wind Turbine Structural Bolting
in wind turbine assemblies
General High-Load Mechanical Assembly
the highest-load applications
Internationally Recognised Standards Coverage
Related Fastener Grades & Materials
Grade 10.9 Deep Dive
The most widely used high-strength class, and where it fits against 12.9.
View Grade 10.9 →High Tensile Bolt Grades Explained
A cross-system head-marking identification guide across metric and SAE grading.
View Grade Guide →High Tensile Bolts Specifications
The full detailed specification breakdown across all three major property classes.
View High Tensile Specs →Fastener Applications By Industry
A broader guide to matching fastener material grades to the right industry and environment.
View Applications Guide →Need the Highest
Clamping Force per Bolt?
Tell us your joint load and coating requirement — we’ll confirm whether genuine Grade 12.9 is the right call, and manage hydrogen embrittlement risk correctly if it is. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
