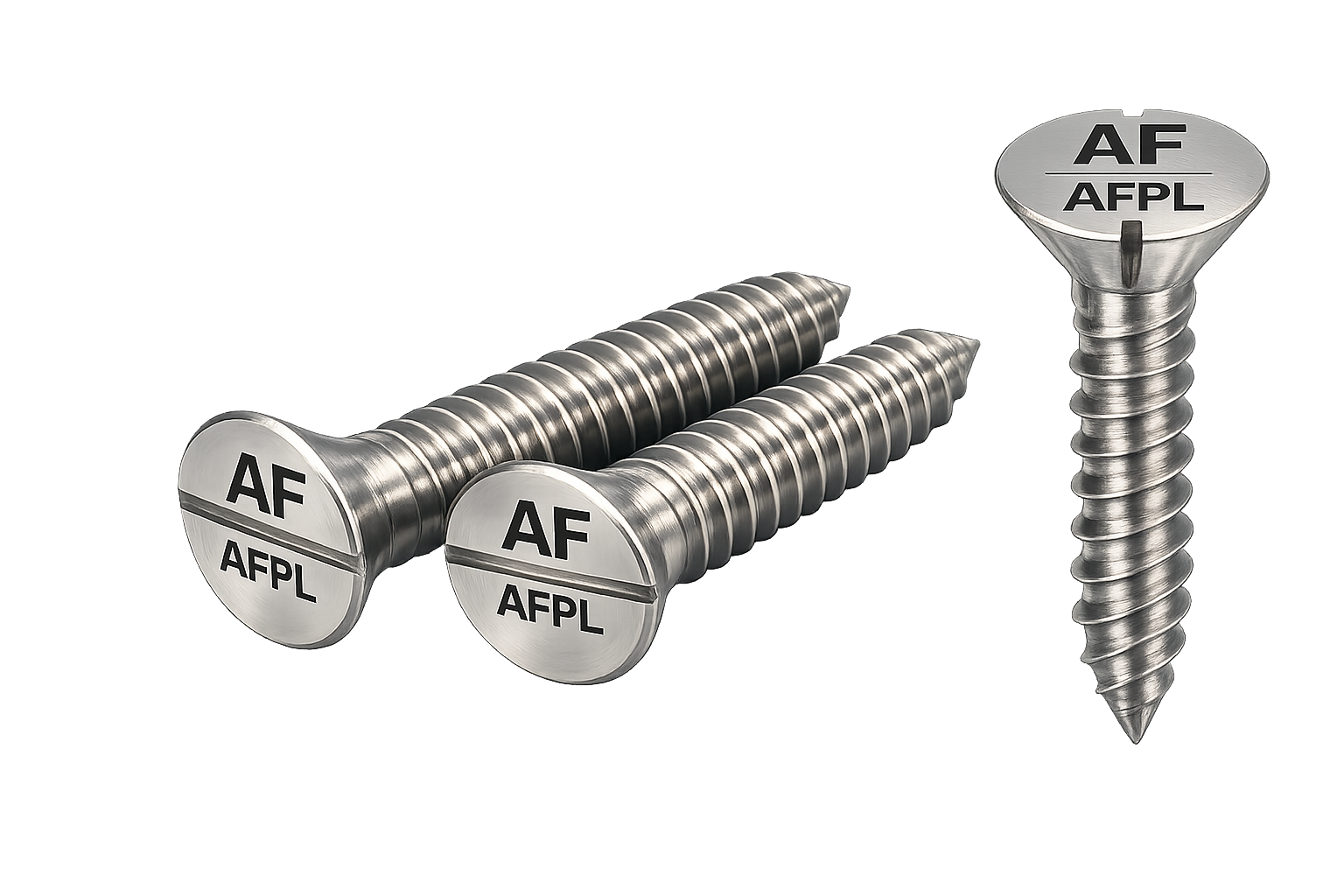

DIN 97 Slotted
Flat Head Wood Screws
Manufacturer Mumbai
What Is a DIN 97 Slotted Flat Head Wood Screws
Of the three common slotted wood screw head styles, DIN 97 is the one built to disappear. The underside of the head is a cone-shaped taper — a countersink — machined to a consistent angle that matches a countersunk pilot hole exactly. As the screw is driven, the tapered head wedges into the countersink and draws itself down until the top surface sits perfectly flush with the timber, rather than resting proud like a round head or partially raised like an oval head.
That flush result is the entire point of specifying this head style. A proud screw head on a deck board becomes a trip hazard and a snag point for bare feet; on furniture, it interrupts a surface meant to be sanded and finished smooth; on a hinge leaf or door strike plate, a countersunk screw is what allows the hardware to sit flat against the timber the way it was designed to. Anywhere the finished result needs to read as a continuous surface rather than a fastened one, DIN 97 is the specification.
Akbar Fasteners Pvt. Ltd. manufactures DIN 97 wood screws in-house at our Mumbai facility, under ISO 9001:2015, with full mill test documentation, and exports this range to over 50 countries.
Where DIN 97 Screws Genuinely Earn Their Place
Fully Flush Finished Surface
The countersunk taper draws the head level with the timber surface, leaving nothing proud to catch, snag, or interrupt a flat finish.
Predictable, Self-Centering Seating
A consistent countersink angle means the screw locates and beds identically every time, hole after hole, across large batches.
Full Size & Weight Reference
A published dimension and weight chart lets you plan quantity and freight before an order is placed, not after.
Wide Material & Finish Choice
Carbon steel and stainless steel available across the full gauge range, in bulk quantities for construction and furniture manufacturers.
DIN 97 Wood Screw Dimension & Weight Chart
Standard nominal dimensions and approximate weight by screw gauge — head diameter (dk) and head depth are the figures to check first against your countersink cutter setting. Weight is given per 100 pieces at a common reference length; actual weight scales with the length ordered.
| Gauge (No.) | Shank Dia. (d) | Head Dia. (dk) | Head Depth (k) | Typical Length Range | Approx Weight/100pcs (Ref. Length) |
|---|---|---|---|---|---|
| No. 4 | 2.9 mm | 6.0 mm | 1.7 mm | 10 – 25 mm | ~0.25 kg @ 20mm |
| No. 6 | 3.5 mm | 7.3 mm | 2.0 mm | 12 – 40 mm | ~0.42 kg @ 25mm |
| No. 8 | 4.2 mm | 8.8 mm | 2.4 mm | 16 – 50 mm | ~0.68 kg @ 32mm |
| No. 10 | 4.8 mm | 10.0 mm | 2.8 mm | 20 – 63 mm | ~1.00 kg @ 40mm |
| No. 12 | 5.5 mm | 11.3 mm | 3.1 mm | 25 – 75 mm | ~1.42 kg @ 50mm |
| No. 14 | 6.3 mm | 13.0 mm | 3.6 mm | 32 – 90 mm | ~2.05 kg @ 63mm |
| No. 16 | 7.0 mm | 14.5 mm | 4.0 mm | 40 – 100 mm | ~2.70 kg @ 75mm |
| No. 20 | 8.4 mm | 17.3 mm | 4.8 mm | 50 – 120 mm | ~4.20 kg @ 90mm |
Figures shown are representative reference values in steel for quick planning purposes and may vary slightly by manufacturer tolerance and length ordered. Please confirm exact dimensions against the current DIN 97 standard document or your engineering drawing, and request our certified dimensional data sheet, before finalizing a purchase order.
Wood Screw Product Range
Slotted Flat Head Wood Screws
Fully countersunk, flush-seating wood screws in carbon and stainless steel, No.2 to No.20 gauge.
DIN 96Slotted Raised Countersunk Wood Screws
Oval head wood screws combining flush seating with a raised, decorative top.
DIN 95Slotted Round Head Wood Screws
Fully domed head wood screws for a proud, visible fastening finish.
Support ToolingCountersink Bits & Pilot Drills
Matched countersink cutters and pilot drills for accurate DIN 97 screw installation.
DIN 97 Technical Overview
Available Materials
- Carbon Steel Standard Offering
- Stainless Steel A2 / A4 on Request
- Brass Decorative Applications
- Surface Finish Zinc Plated / Bright / Brass
- Custom Material To Specification
Design Details
- Point Style Gimlet, Self-Tapping
- Thread Type Coarse, Wood-Specific
- Head Style Flat Countersunk
- Drive Type Single Straight Slot
- Testing MTC / NABL on Request
Available Dimensions
- Gauge No. 2 – No. 20
- Length Custom to Drawing
- Custom Sizes To Drawing on Request
- Standard Reference DIN 97
- Packaging Loose / Boxed / Bulk
Application Areas
Wherever the fastener needs to disappear into a flat finished surface.
Flooring & Decking
for walking surfaces
Furniture Manufacturing
sanded, finished surfaces
Hinge & Strike Plate Fitting
requiring a clean fit
Cabinetry & Shopfitting
painted or veneered surfaces
General Joinery
needing a flush finish
Marine Decking & Joinery
cabin fastening
DIY & Home Improvement
fastening for repairs
General Carpentry
volume woodworking
Standard Export Documentation
Prepared as standard practice for every wood screw shipment.
Mill Test Certificate (MTC)
Material composition and mechanical property verification for every production batch.
Certificate of Conformance
Confirms the shipment matches the purchase order specification, gauge, and length in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Dimensional Data Sheet
Certified head diameter, countersunk angle, and length data against DIN 97 available on request before order confirmation.
Bill of Lading
Ocean or air freight shipping document confirming carrier, mode, and consignee details.
Internationally Recognised Standards Coverage
Related Fastener Grades & Standards
DIN 96 Oval Head Wood Screws
Flush-seating base with a raised, decorative domed top for visible hardware.
View DIN 96 →DIN 95 Round Head Wood Screws
Fully domed head wood screws for a proud, visible fastening finish.
View DIN 95 →DIN 84 Cheese Head Screws
Slotted machine screws for general electrical and light assembly fastening.
View DIN 84 →Top Nickel Fasteners Manufacturer
See our full in-house nickel alloy manufacturing and documentation capability.
View Manufacturer Page →Send Us Your
Gauge, Length & Quantity
Tell us your gauge, length, material preference, and quantity — we’ll confirm the correct DIN 97 specification and issue a certified dimensional data sheet with your quote. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
