DIN 125 A

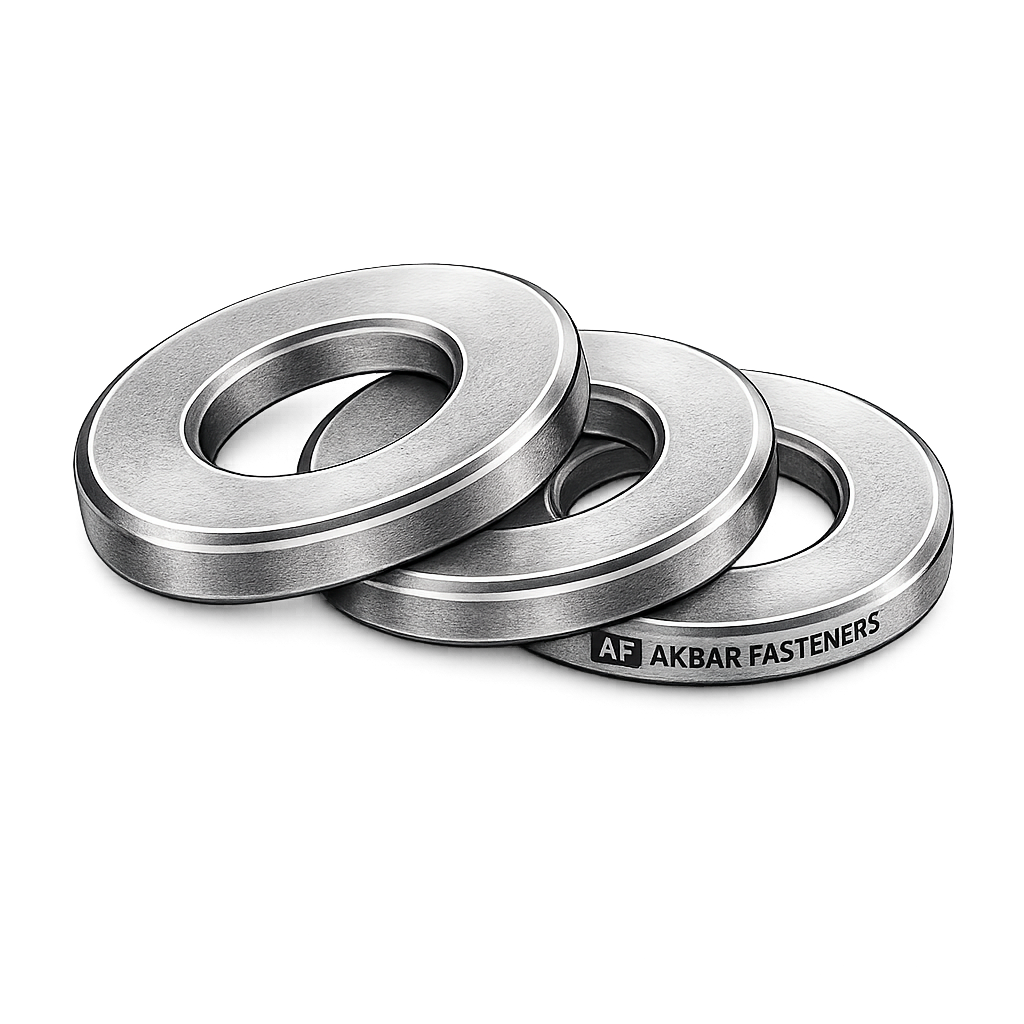

Plain Washers, Type A
Manufacturer Mumbai
What Is a DIN 125 A Plain Washer
When an engineering drawing or a bill of materials simply calls out “flat washer” or “plain washer” without further qualification, DIN 125 A is very often the default assumption — it’s the standard, non-chamfered form of the close-tolerance plain washer series, and the version most commonly stocked and specified across general engineering. Its defining characteristic is the inner hole clearance: sized snugly against the nominal bolt diameter, closer than the deliberately wider DIN 126 series, which makes it the right choice wherever the bolt hole itself has been machined or drilled to a proper tolerance rather than a coarse clearance fit.
Type A carries no chamfer on the outer edge — a plain, flat-faced disc from edge to edge — as opposed to Type B, which has a light chamfer typically applied on the larger sizes in the range for ease of production. Functionally, the two are equivalent for almost all purposes; Type A remains the more universally recognised and specified of the two.
Akbar Fasteners Pvt. Ltd. manufactures DIN 125 A plain washers in-house at our Mumbai facility, under ISO 9001:2015, with full mill test documentation, and exports this range to over 50 countries.
Where DIN 125 A Washers Genuinely Earn Their Place
Close-Tolerance Fit
Sized for precision-machined bolt holes, sitting snugly against the fastener without the extra clearance of a DIN 126 washer.
The Universally Recognised Default
The most commonly stocked and specified plain washer form, straightforward to source and cross-reference across suppliers.
Full Size & Weight Reference
A published dimension and weight chart lets you plan quantity and freight before an order is placed, not after.
Wide Material & Finish Choice
Carbon steel and stainless steel available across the full size range, in bulk quantities for precision assembly needs.
DIN 125 A Plain Washer Dimension & Weight Chart
Standard nominal dimensions and approximate weight by bolt size — inner diameter (d1) runs noticeably closer to nominal bolt size than the wider-clearance DIN 126 series. Weight is given per 100 pieces; actual weight may vary slightly with material and finish selected.
| Bolt Size (d) | Inner Dia. (d1) | Outer Dia. (d2) | Thickness (s) | Approx Weight/100pcs |
|---|---|---|---|---|
| M3 | 3.2 mm | 7.0 mm | 0.5 mm | ~0.14 kg |
| M4 | 4.3 mm | 9.0 mm | 0.8 mm | ~0.32 kg |
| M6 | 6.4 mm | 12.0 mm | 1.6 mm | ~1.05 kg |
| M8 | 8.4 mm | 16.0 mm | 1.6 mm | ~1.85 kg |
| M10 | 10.5 mm | 20.0 mm | 2.0 mm | ~3.05 kg |
| M12 | 13.0 mm | 24.0 mm | 2.5 mm | ~4.85 kg |
| M16 | 17.0 mm | 30.0 mm | 3.0 mm | ~7.60 kg |
| M20 | 21.0 mm | 37.0 mm | 3.0 mm | ~11.20 kg |
| M24 | 25.0 mm | 44.0 mm | 4.0 mm | ~19.40 kg |
Figures shown are representative reference values in steel for quick planning purposes and may vary slightly by manufacturer tolerance and material selected. Please confirm exact dimensions against the current DIN 125 standard document or your engineering drawing, and request our certified dimensional data sheet, before finalizing a purchase order.
Flat Washer Product Range
Plain Washers, Type A (Standard)
Close-tolerance flat washers, standard non-chamfered form, M3 to M64.
DIN 125 BPlain Washers, Type B (Chamfered)
The chamfered counterpart to Type A, functionally equivalent for most applications.
DIN 126Plain Washers, Wide Clearance
Wider inner diameter series for structural and coarse-hole bolting applications.
DIN 127 BSpring Lock Washers, Type B
Helical split lock washers for anti-loosening resistance, often paired with a plain washer.
DIN 125 A Technical Overview
Available Materials
- Carbon Steel Standard Offering
- Stainless Steel A2 / A4 on Request
- Brass Special Applications
- Surface Finish Zinc Plated / Bright
- Custom Material To Specification
Manufacturing Details
- Hole Clearance Close, per DIN 125
- Outer Edge Non-Chamfered (Type A)
- Flatness Standard Manufacturing Tolerance
- Hardness As-Rolled / Case Dependent
- Testing MTC / NABL on Request
Available Dimensions
- Bolt Size M3 – M64
- Custom Sizes To Drawing on Request
- Standard Reference DIN 125 A
- Thickness Range 0.5 – 6.0 mm
- Packaging Loose / Boxed / Bulk
Application Areas
Wherever the bolt hole is precision-machined and a snug washer fit matters.
Machine Tool Assembly
bolted joint assemblies
Automotive Assembly
engine fastening applications
Instrumentation & Precision Equipment
assembly applications
Electrical & Electronics Assembly
panels and enclosures
Furniture & Cabinet Hardware
fastening assemblies
Packaging Machinery
guard panel fastening
General Engineering Assembly
joints in machinery
General OEM Assembly
volume manufacturing
Standard Export Documentation
Prepared as standard practice for every plain washer shipment.
Mill Test Certificate (MTC)
Material composition and mechanical property verification for every production batch.
Certificate of Conformance
Confirms the shipment matches the purchase order specification, size, and grade in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Dimensional Data Sheet
Certified inner/outer diameter and thickness data against DIN 125 A available on request before order confirmation.
Bill of Lading
Ocean or air freight shipping document confirming carrier, mode, and consignee details.
Internationally Recognised Standards Coverage
Related Fastener Grades & Standards
DIN 125 B Plain Washers
The chamfered counterpart, functionally equivalent for most applications.
View DIN 125 B →DIN 126 Plain Washers
Wider inner diameter washer series for structural and coarse-hole bolting applications.
View DIN 126 →DIN 127 B Spring Lock Washers
Helical split lock washers offering spring tension plus sharp-edge bite for vibration resistance.
View DIN 127 B →Top Nickel Fasteners Manufacturer
See our full in-house nickel alloy manufacturing and documentation capability.
View Manufacturer Page →Send Us Your
Bolt Size & Quantity
Tell us your bolt size, material preference, and quantity — we’ll confirm the correct DIN 125 A specification and issue a certified dimensional data sheet with your quote. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
