DIN 126
Plain Washers
Manufacturer Mumbai

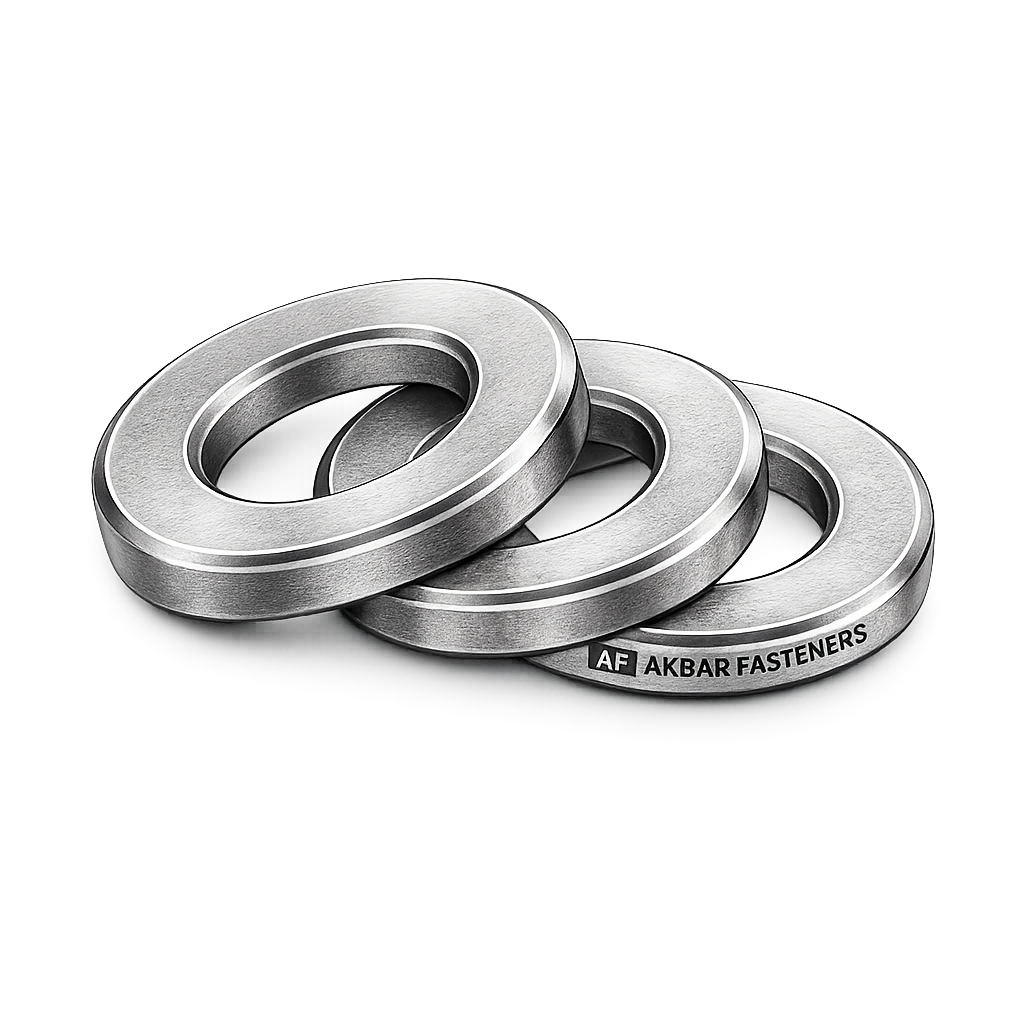

What Is a DIN 126 Plain Washer
Every flat washer does the same basic job — spread the clamping load of a bolt head or nut over a wider bearing area than the fastener alone would cover, and stop the fastener chewing into a softer or coated surface as it’s tightened. Where DIN 126 differs from the more commonly known DIN 125 is purely in the inner hole size: DIN 125 assumes a fairly close-fitting bolt hole, while DIN 126 is sized with a noticeably larger inner diameter, matched to the coarser clearance holes typical of structural steel connections, “black” (unfinished) bolts, and general fabrication where drilling tolerance is looser by design.
That larger clearance matters in practice — try to fit a DIN 125 washer over a bolt that’s gone through an oversized structural clearance hole and it may not seat flat or fully cover the hole edge; DIN 126 is dimensioned specifically to still work correctly in that situation. It’s the washer to specify whenever the bolt hole itself is expected to run wider than precision-machined tolerance.
Akbar Fasteners Pvt. Ltd. manufactures DIN 126 plain washers in-house at our Mumbai facility, under ISO 9001:2015, with full mill test documentation, and exports this range to over 50 countries.
Where DIN 126 Washers Genuinely Earn Their Place
Matched to Coarser Hole Tolerance
The larger inner diameter reliably seats flat over structural and black-bolt clearance holes that a standard DIN 125 washer wouldn’t cover cleanly.
Genuine Load Distribution
Spreads clamping force over a wider flat bearing area, protecting softer materials and coatings from bolt head or nut damage.
Full Size & Weight Reference
A published dimension and weight chart lets you plan quantity and freight before an order is placed, not after.
Wide Material & Finish Choice
Carbon steel and stainless steel available across the full size range, in bulk quantities for structural and OEM assembly needs.
DIN 126 Plain Washer Dimension & Weight Chart
Standard nominal dimensions and approximate weight by bolt size — inner diameter (d1) is the figure to check first against your actual drilled hole size, since it runs noticeably wider than a DIN 125 washer of the same nominal bolt size. Weight is given per 100 pieces; actual weight may vary slightly with material and finish selected.
| Bolt Size (d) | Inner Dia. (d1) | Outer Dia. (d2) | Thickness (s) | Approx Weight/100pcs |
|---|---|---|---|---|
| M4 | 4.5 mm | 12.0 mm | 1.0 mm | ~0.55 kg |
| M6 | 6.6 mm | 18.0 mm | 1.5 mm | ~1.65 kg |
| M8 | 9.0 mm | 24.0 mm | 2.0 mm | ~3.30 kg |
| M10 | 11.0 mm | 30.0 mm | 2.5 mm | ~5.75 kg |
| M12 | 13.5 mm | 36.0 mm | 3.0 mm | ~8.90 kg |
| M16 | 17.5 mm | 44.0 mm | 3.0 mm | ~13.60 kg |
| M20 | 22.0 mm | 56.0 mm | 4.0 mm | ~24.80 kg |
| M24 | 26.0 mm | 66.0 mm | 5.0 mm | ~38.20 kg |
| M30 | 33.0 mm | 84.0 mm | 6.0 mm | ~68.50 kg |
Figures shown are representative reference values in steel for quick planning purposes and may vary slightly by manufacturer tolerance and material selected. Please confirm exact dimensions against the current DIN 126 standard document or your engineering drawing, and request our certified dimensional data sheet, before finalizing a purchase order.
Flat Washer Product Range
Plain Washers, Wide Clearance
Wider inner diameter flat washers for structural and coarse-hole bolting, M3 to M64.
DIN 125Plain Washers, Standard Series
Close-tolerance flat washers for precision-drilled bolt holes, the counterpart series to DIN 126.
DIN 9021Large Outer Diameter Washers
Extra-wide bearing surface washers for soft materials, plastics, and thin sheet metal.
DIN 93Tab Washers
Bendable locking washers for a physical, verifiable nut-locking mechanism.
DIN 126 Technical Overview
Available Materials
- Carbon Steel Standard Offering
- Stainless Steel A2 / A4 on Request
- Alloy Steel High-Load Applications
- Surface Finish Zinc Plated / Black Oxide
- Custom Material To Specification
Manufacturing Details
- Hole Clearance Wide, per DIN 126
- Product Grade Coarse (Grade C typical)
- Flatness Standard Manufacturing Tolerance
- Hardness As-Rolled / Case Dependent
- Testing MTC / NABL on Request
Available Dimensions
- Bolt Size M3 – M64
- Custom Sizes To Drawing on Request
- Standard Reference DIN 126
- Thickness Range 0.8 – 8.0 mm
- Packaging Loose / Boxed / Bulk
Application Areas
Wherever the drilled hole runs coarser than precision machining tolerance.
Structural Steel Fabrication
connection bolting
Black Bolt Assemblies
unfinished bolt applications
Construction & Fabrication
workshop bolting applications
Agricultural Equipment
coarser hole tolerance
Rail & Transport Infrastructure
connection bolting
Bridge & Heavy Infrastructure
connection applications
Material Handling Equipment
assembly bolting
General Fabrication & Assembly
volume manufacturing
Standard Export Documentation
Prepared as standard practice for every plain washer shipment.
Mill Test Certificate (MTC)
Material composition and mechanical property verification for every production batch.
Certificate of Conformance
Confirms the shipment matches the purchase order specification, size, and grade in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Dimensional Data Sheet
Certified inner/outer diameter and thickness data against DIN 126 available on request before order confirmation.
Bill of Lading
Ocean or air freight shipping document confirming carrier, mode, and consignee details.
Internationally Recognised Standards Coverage
Related Fastener Grades & Standards
DIN 127 B Spring Lock Washers
Helical split lock washers offering spring tension plus sharp-edge bite for vibration resistance.
View DIN 127 B →DIN 93 Tab Washers
Bendable locking washers offering a physical, verifiable safety locking mechanism.
View DIN 93 →DIN 94 Split Pins
Bend-apart retention pins for castellated nut and clevis pin locking applications.
View DIN 94 →Top Nickel Fasteners Manufacturer
See our full in-house nickel alloy manufacturing and documentation capability.
View Manufacturer Page →Send Us Your
Bolt Size & Quantity
Tell us your bolt size, material preference, and quantity — we’ll confirm the correct DIN 126 specification and issue a certified dimensional data sheet with your quote. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
