Different Types of
Monel Fasteners
Mumbai · India
What Are Different Types of Monel Fasteners
Monel is a nickel-copper alloy — typically 63 to 70% nickel with 28 to 34% copper — originally developed for its resistance to seawater and hydrofluoric acid, two environments that are genuinely hostile to most stainless and even many other nickel alloys. That corrosion resistance, combined with non-magnetic behavior, is why Monel fasteners remain the default choice in marine hardware and HF alkylation units decades after the alloy was first introduced.
“Monel fastener” is not one specification, though. Monel 400 is the original, solid-solution-strengthened grade — corrosion resistance first, moderate strength second. Monel K-500 adds aluminum and titanium so it can be age-hardened, roughly doubling its strength over Monel 400 while keeping the same corrosion resistance — the grade buyers actually want when a Monel fastener needs to carry real mechanical load. Monel R-405 is chemically close to Monel 400 but has sulfur added specifically to improve machinability, making it the preferred choice for fasteners cut on automatic screw machines rather than for maximum toughness.
Akbar Fasteners Pvt. Ltd. exports to over 50 countries, and our Monel range is manufactured with the same ISO 9001:2015 quality system and full mill test documentation as our Inconel, Incoloy, and Hastelloy range.
Where Monel Genuinely Earns Its Cost
Seawater & Chloride Resistance
Among the few alloy families that resist sustained seawater exposure without pitting or crevice corrosion over long service life.
Hydrofluoric Acid Resistance
One of the very few practical material choices for HF alkylation units and other hydrofluoric acid handling equipment.
Non-Magnetic Behaviour
Suitable for instrumentation, sensor housings, and equipment where ferromagnetic materials cannot be used.
A Grade for Every Requirement
Three grades — corrosion-first, strength-first, and machinability-first — mean the fastener matches the job rather than a compromise.
Monel 400 vs Monel K-500 vs Monel R-405
“Monel” alone doesn’t tell a supplier which fastener to cut — the choice between 400, K-500, and R-405 depends on whether you need corrosion resistance, mechanical strength, or ease of machining above the others. The comparison below is the one we walk through with buyers before quoting, so the grade selection matches the actual joint requirement.
| Property | Monel 400 | Monel K-500 | Monel R-405 |
|---|---|---|---|
| UNS Designation | N04400 | N05500 | N04405 |
| Strengthening Mechanism | Solid-solution only | Age-hardenable (Al, Ti additions) | Solid-solution + free-machining (S) |
| Relative Tensile Strength | Moderate (~480–620 MPa) | High (~790–1100 MPa, aged) | Moderate, similar to 400 |
| Machinability | Fair | Fair, harder when aged | Excellent — purpose-built for it |
| Best Suited For | General seawater & HF acid hardware | High-strength bolting, pump shafts, valve stems | Automatic screw machine fasteners, fittings |
| Relative Cost | Moderate | Moderate-High | Moderate |

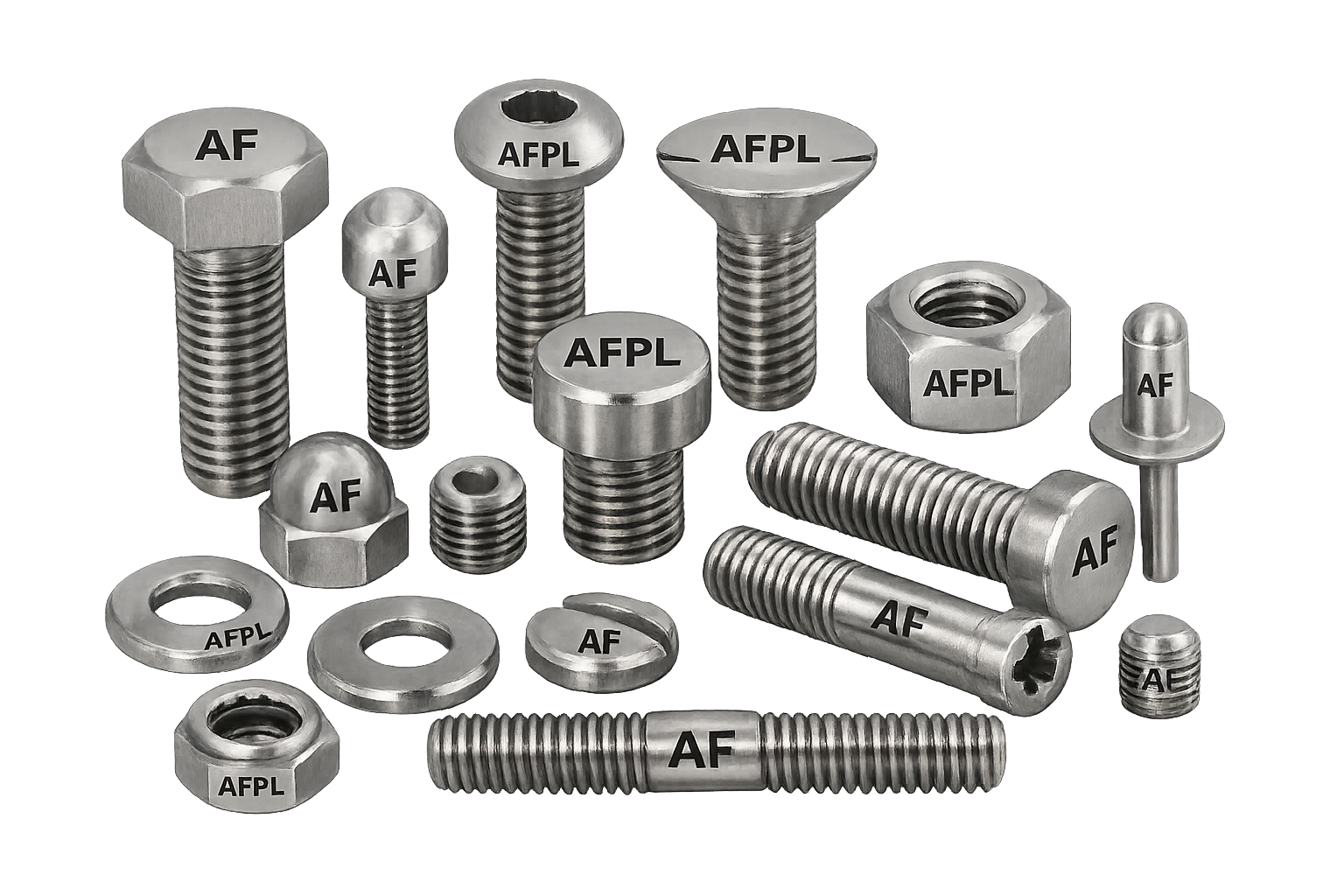

Monel Fastener Product Range
Monel 400 Bolts & Nuts
General-purpose corrosion-resistant hex bolts, nuts, and washers for seawater and HF acid service.
Monel K-500 Stud Bolts
Age-hardened stud bolts for high-strength flanged joints, pump shafts, and valve stems.
Monel R-405 Screws & Fittings
Free-machining Monel for screws and precision-turned fittings cut on automatic screw machines.
Monel Washers & Fasteners
Matching flat, spring, and lock washers across all three Monel grades for complete joint assemblies.
Monel Fastener Technical Overview
Typical Alloying Elements by Grade
- Monel 400 ~63-70% Ni, ~28-34% Cu
- Monel K-500 +2.3-3.15% Al, +0.35-0.85% Ti
- Monel R-405 +0.025-0.06% S added
- Iron (typical) ≤2.5%
- Exact composition Grade-specific — see MTC
Property Ranges (grade dependent)
- Tensile Strength 480–1100 MPa
- Yield Strength 170–790 MPa
- Elongation 20–40%
- Age-Hardening K-500 only
- Testing MTC / NABL on request
Available Dimensions
- Metric Diameter M6 – M56
- Imperial Diameter 1/4″ – 3.5″
- Stud Length Custom to drawing
- Thread Type UNC / UNF / Metric
- Finish As-machined / Passivated
Application Areas
Wherever seawater or hydrofluoric acid rules out most other materials.
Marine & Offshore Hardware
fittings and rigging
HF Alkylation Units
process equipment fastening
Pump Shafts & Valve Stems
rotating component fastening
Oil & Gas Sour Service
fastening in corrosive wells
Chemical Processing
process equipment fastening
Desalination Plants
fastening for RO/MSF units
Instrumentation Equipment
sensitive electronic equipment
Pulp & Paper Processing
equipment fastening
Standard Export Documentation
Prepared as standard practice for every Monel fastener shipment.
Mill Test Certificate (MTC)
Heat number, chemical composition, and mechanical property verification for every lot.
Certificate of Conformance
Confirms the shipment matches the purchase order specification and grade in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
NABL Accredited Test Reports
Independent mechanical and chemical testing available on request for critical applications.
Bill of Lading
Ocean or air freight shipping document confirming carrier, mode, and consignee details.
Internationally Recognised Standards Coverage
Related Fastener Grades & Materials
Hastelloy B-3 Stud Bolts
Our established nickel-molybdenum alloy fastening line for severe corrosion service.
View Hastelloy B-3 →Super Duplex Fasteners
High strength and severe chloride resistance where nickel alloy properties aren’t strictly required.
View Super Duplex →Stainless Steel 316 Fasteners
The economical corrosion-resistant starting point before stepping up to a nickel alloy.
View SS 316 →Titanium Grade 5 Fasteners
A lighter-weight alternative with comparable corrosion resistance for weight-critical applications.
View Titanium Grade 5 →Not Sure Which
Monel Grade You Need?
Tell us the environment and load — seawater, HF acid, or high-strength bolting — and we’ll help you select the right Monel grade. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
