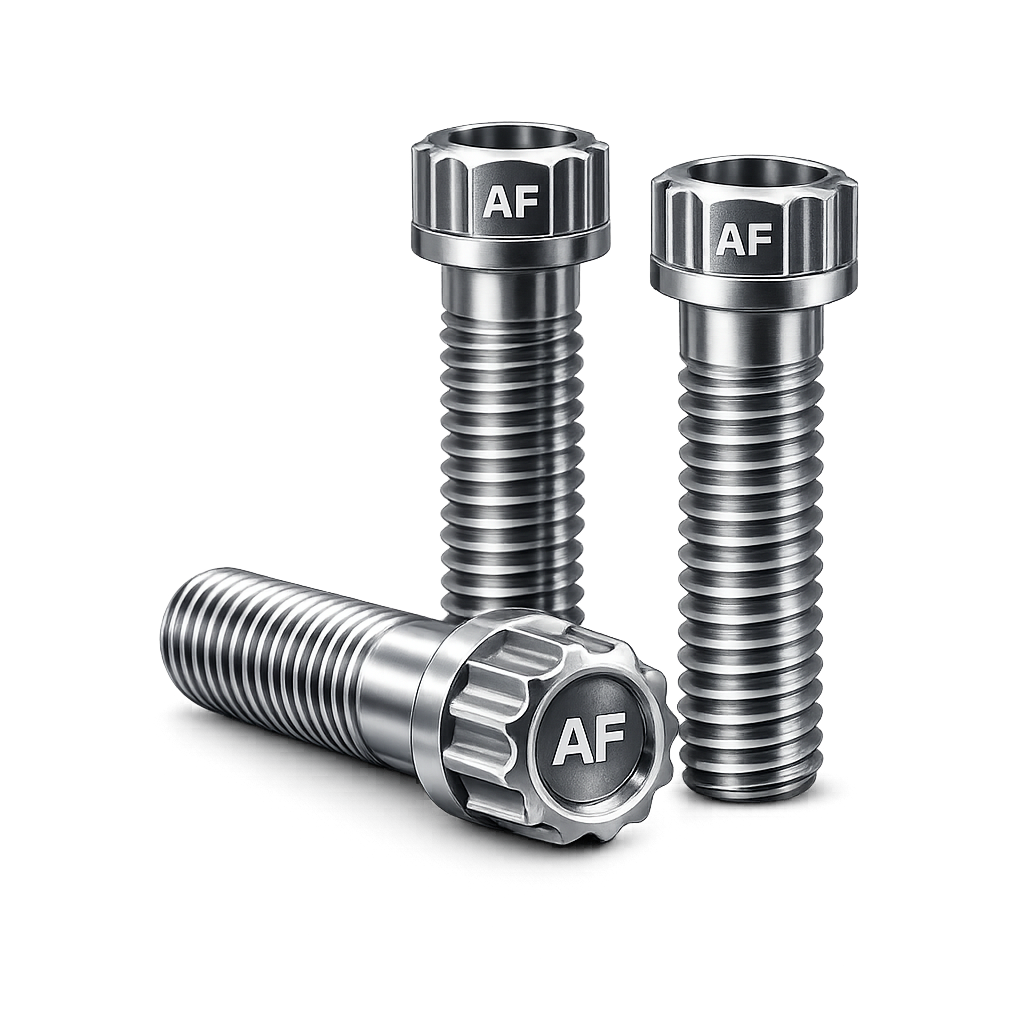

NAS6603
12-Point Head Bolts
Mumbai · India
Why a 12-Point Head Genuinely Matters
A standard hex head gives a socket only six flats to grip and needs a full 60-degree swing to re-engage the wrench in a new position — fine in open assembly areas, but genuinely limiting in a cramped aerospace structure where a technician often has only a few degrees of swing room around the bolt head. A 12-point head solves both problems at once: twelve flats give the socket twice as many contact surfaces to distribute torque across, reducing the risk of rounding the head under high installation torque, while needing only a 30-degree swing to re-engage in the next position.
NAS6603 pairs that 12-point head with the same precision-ground shank philosophy behind our MIL-B-857 close tolerance bolts — a near-zero clearance fit into a reamed hole that carries shear load directly through the bolt shank. Many NAS6603 configurations also include a drilled bolt head for safety wire, letting the installed bolt be mechanically secured against back-off under vibration, a detail particularly relevant in high-vibration engine and structural zones.
Akbar Fasteners Pvt. Ltd. exports to over 50 countries, and our NAS6603 range is manufactured with precision shank control and head drilling for safety wire, verified by dimensional and shear testing under our ISO 9001:2015 quality system.
Where This Standard Genuinely Applies
Reduced Rounding Risk at High Torque
Twelve wrenching flats distribute torque more evenly than a six-flat hex, resisting head rounding.
Works in Tight Swing Clearance
Needs only 30° of swing to re-engage, versus 60° for a standard hex head.
Safety Wire Compatible
Drilled head option allows mechanical securing against vibration back-off in critical joints.
Precision Shank for Shear-Critical Joints
Close tolerance shank carries shear load directly, consistent with our broader precision bolt range.
NAS6603 Options Explained
Safety-Wire Drilled Head
Cross-drilled head allowing installation of lockwire to mechanically secure the fastener against back-off.
Standard Undrilled Head
Standard 12-point head without drilling, for locations not requiring safety wire retention.
Alloy Steel / CRES
Heat-treated alloy steel for maximum strength, or corrosion-resistant steel for exposed environments.
12-Point Head vs Standard Hex Head
Confirming the available wrench swing clearance and installation torque determines whether the 12-point head genuinely earns its place. This table is the quick reference we use with buyers before quoting.
| Aspect | NAS6603 12-Point Head | Standard Hex Head |
|---|---|---|
| Wrenching Flats | 12 flats | 6 flats |
| Swing Clearance Needed | 30° | 60° |
| Rounding Risk at High Torque | Lower | Higher |
| Safety Wire Option | Commonly available drilled head | Less common on standard hex |
NAS6603 Specification Details
Materials We Manufacture In
- Alloy Steel Heat Treated
- Corrosion-Resistant Steel 300 Series CRES
- Finish Cadmium / Zinc-Nickel / Passivated
- Coating Per Environment Requirement
How NAS6603 Bolts Are Made
- Head 12-Point, Drilled / Undrilled
- Shank Precision Ground, Close Tolerance
- Testing Dimensional / Shear
- Quality Batch Sampled
Available Dimensions
- Nominal Size #8 – 1″ (Inch Series)
- Metric Equivalent Available to Drawing
- Grip Length Custom to Application
- Custom Sizes On Request
Application Areas
Wherever high torque, tight swing clearance, and vibration security all matter at once.
Aircraft Engine Mounts
engine attachment joints
Landing Gear Assembly
structural connections
Defense & Military Aircraft
precision bolt requirements
Rocket & Launch Vehicle Structure
fastening in tight assemblies
Confined Access Structural Joints
wrench swing clearance
Marine Propulsion Assembly
secured marine drivetrain
Motorsport & High-Performance Engines
engine fastening
General High-Torque Precision Fastening
torque control and clearance
Standard Export Documentation
Prepared as standard practice for every NAS6603 bolt shipment.
Mill Test Certificate (MTC)
Heat number, chemical composition, and mechanical property verification for every lot.
Shank Diameter Inspection Report
Batch-level dimensional testing confirming genuine precision shank tolerance for the ordered size.
Certificate of Conformance
Confirms the shipment matches the purchase order material/head option specification in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
NABL Accredited Test Reports
Independent mechanical and dimensional testing available on request for critical applications.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Internationally Recognised Standards Coverage
Related Fastener Grades & Materials
MIL-B-857 Close Tolerance Bolts
Our general precision-shank bolt specification for reamed-hole structural joints.
View MIL-B-857 →AN960 Flat Washers
Our aerospace flat washer range, commonly paired with NAS bolt series.
View AN960 →NASM1312 Fastener Test Methods
Our fastener test methods reference used to qualify this bolt’s tension and shear strength.
View NASM1312 →Fasteners Manufacturer & Exporter to the USA
Our broader capability manufacturing to ASTM/ASME and US federal/military standards.
View USA Export Guide →Need High Torque
in Tight Swing Clearance?
Tell us your clearance constraint, torque requirement, and whether you need safety wire drilling — we’ll confirm the right configuration and quote across our full NAS6603 range. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
