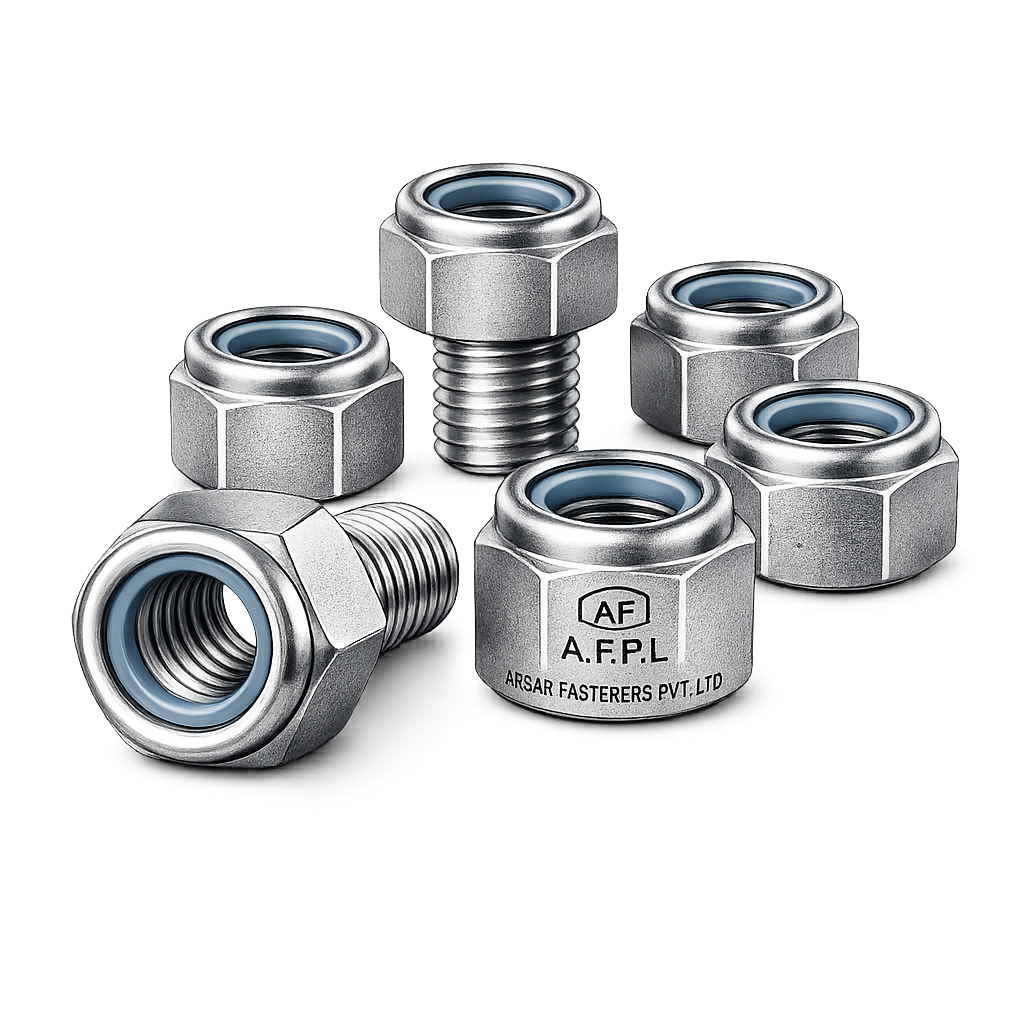

MIL-N-25027
Self-Locking Nuts
Mumbai · India
What MIL-N-25027 Actually Covers
MIL-N-25027 covers self-locking nuts designed to hold prevailing torque reliably in aerospace and defense assembly — nuts that resist self-loosening under sustained vibration through a built-in locking feature rather than relying on clamping tension alone. The specification defines two distinct temperature classes under one family, because a single locking mechanism can’t realistically serve both a cool cabin interior application and a hot engine-adjacent structural zone equally well.
That’s the core reason this specification splits into Type I and Type II rather than offering one universal nut — Type I uses a nylon insert that provides excellent locking friction but has a genuine upper temperature limit around 250°F before the material begins to degrade, while Type II abandons the nylon entirely in favor of an all-metal deformed-thread locking feature rated to 450°F for hotter zones where nylon simply wouldn’t survive. Specifying which type an assembly needs is the practical decision that matters more here than any other single detail.
Akbar Fasteners Pvt. Ltd. exports to over 50 countries, and our self-locking nut range is manufactured across both Type I and Type II, verified by prevailing torque and reuse-cycle testing under our ISO 9001:2015 quality system.
Where This Specification Genuinely Applies
Reliable Prevailing Torque
Both types deliver consistent friction or deformation-based locking rather than depending on clamp tension alone.
Defined Temperature Coverage
Two temperature classes let a purchase order specify the exact right nut for the actual thermal environment.
Rated for Repeated Reuse
Both types are qualified to retain locking performance through a defined number of reuse cycles.
Full Aerospace Traceability
Complete heat and lot documentation with prevailing torque test records for aerospace-grade procurement.
Type I and Type II in Detail
MIL-N-25027-1 Nylon Insert Nuts
Nylon insert locking ring rated to 250°F continuous — the most common variant for general airframe and cabin-zone assembly. See our dedicated Type I page for full detail on materials, sizing, and applications.
View MIL-N-25027-1 →All-Metal Locking Nuts
All-metal deformed-thread locking feature rated to 450°F continuous, for engine-adjacent and other higher-temperature aerospace structural zones where a nylon insert would not survive service conditions.
Type I vs Type II — Quick Reference
Confirming the actual sustained temperature the assembly will see avoids specifying a locking feature that degrades in service. This table is the quick reference we use with buyers before quoting.
| Aspect | Type I (MIL-N-25027-1) | Type II |
|---|---|---|
| Locking Mechanism | Nylon insert ring | All-metal deformed thread |
| Temperature Rating | 250°F continuous | 450°F continuous |
| Typical Use Zone | General airframe, cabin systems | Engine-adjacent, high-heat zones |
| Locking Feature Wear | Nylon wears gradually with reuse | Metal deformation wears gradually with reuse |
MIL-N-25027 Specification Details
Materials We Manufacture In
- Carbon/Alloy Steel Cadmium / Zinc-Nickel Plated
- Stainless Steel 300 Series, Passivated
- Locking Insert Nylon (Type I)
- Finish Per Corrosion Environment
How Self-Locking Nuts Are Made
- Process Cold Formed / Machined
- Locking Feature Insert or Deformed Thread
- Testing Prevailing Torque / Reuse Cycles
- Quality Batch Sampled
Available Dimensions
- Nominal Size #4 – 1″ (Inch Series)
- Metric Equivalent Available to Drawing
- Type Type I (250°F) / Type II (450°F)
- Matching Standard NAS / AN Bolt Series
Application Areas
Wherever aerospace-grade vibration resistance and repeated-reuse reliability genuinely matter.
Aircraft Airframe Assembly
fastening applications
Engine & Nacelle Structure
for higher-temperature zones
Defense & Military Vehicle Assembly
vehicle applications
Rocket & Launch Vehicle Hardware
fastening requirements
Ground Support Equipment
ground equipment assembly
Marine & Naval Aviation Equipment
aviation procurement
High-Vibration Industrial Equipment
vibration-prone assemblies
General Aerospace-Grade Fastening
is explicitly specified
Standard Export Documentation
Prepared as standard practice for every MIL-N-25027 self-locking nut shipment.
Mill Test Certificate (MTC)
Heat number, chemical composition, and mechanical property verification for every lot.
Prevailing Torque Test Records
Batch-level testing confirming locking torque falls within the specified range for the ordered type.
Certificate of Conformance
Confirms the shipment matches the purchase order type/material specification in full.
Certificate of Origin (COO)
Confirms India as country of manufacture for destination customs purposes.
NABL Accredited Test Reports
Independent mechanical and dimensional testing available on request for critical applications.
Commercial Invoice & Packing List
Itemized value, Incoterm, and detailed carton/weight breakdown for customs clearance.
Internationally Recognised Standards Coverage
Related Fastener Grades & Materials
MIL-N-25027-1 Nylon Insert Nuts
Our dedicated page for the 250°F nylon-insert Type I self-locking nut variant.
View MIL-N-25027-1 →FF-N-836 Hex Nuts
Our commercial hex nut range for general-purpose, non-aerospace bolted joints.
View FF-N-836 →Titanium Grade 5 Fasteners
Our aerospace-grade titanium fastener range, often paired with self-locking nuts in aircraft assembly.
View Titanium Gr5 Fasteners →Fasteners Manufacturer & Exporter to the USA
Our broader capability manufacturing to ASTM/ASME and US federal/military standards.
View USA Export Guide →Type I or Type II —
We’ll Confirm Which Fits
Tell us your temperature exposure and reuse requirement — we’ll confirm the right type and quote across our full self-locking nut range with prevailing torque test documentation. Akbar Fasteners Pvt. Ltd. responds within 24 hours.
